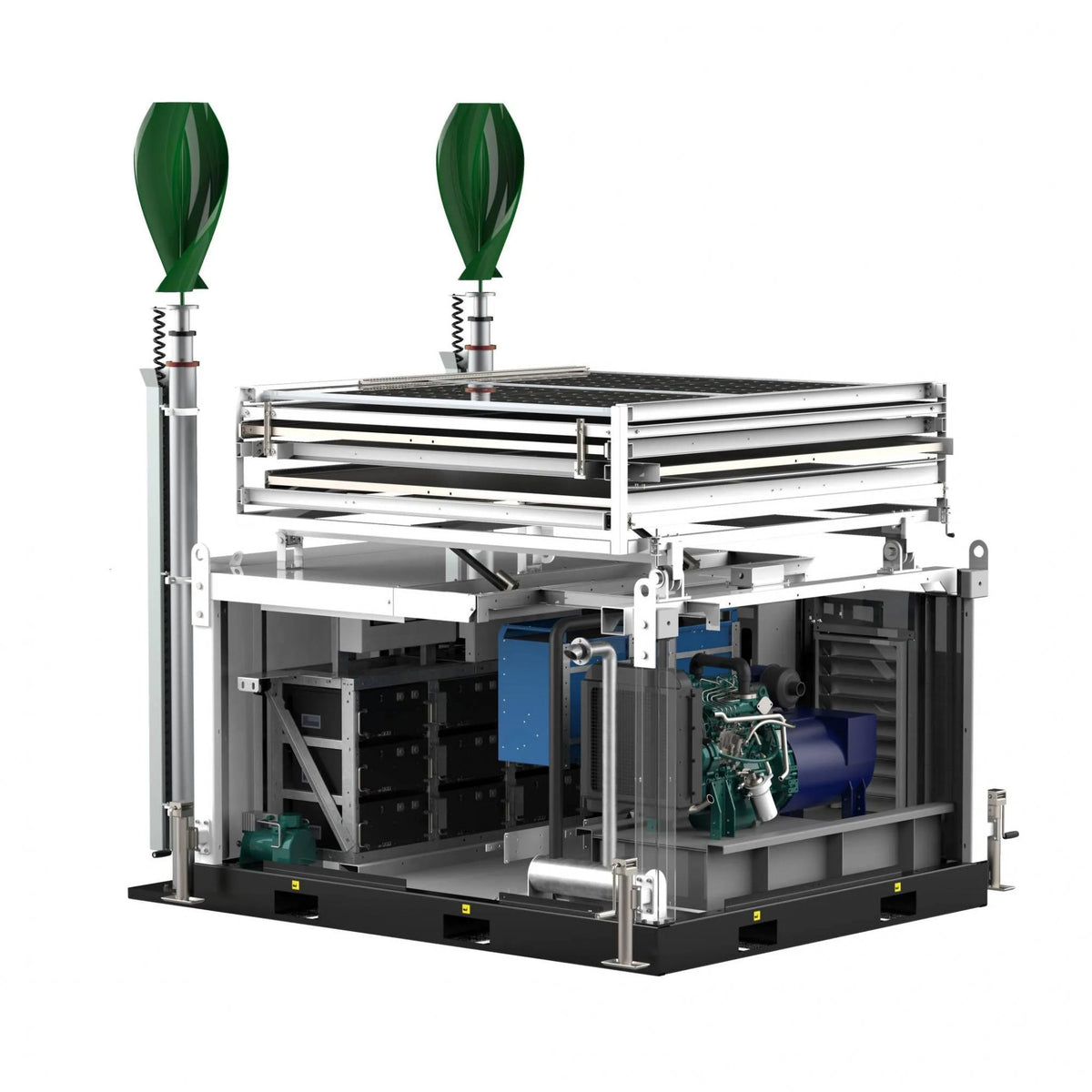

CONDOR ENERGY POD 402

The Condor Energy Pod CEP-402 is a Micro Power Grid, harvesting power from four renewable sources within one innovative unit. Wind, Solar, HVO fuelled onboard generator and Lithium-Ion Battery Power Pack. The All-in-One unit is an intelligently designed economically
sufficient power system that ensures the reduction of harmful CO2 gases to the atmosphere, storing power in the on-board lithium-ion batteries. The unique design allows the solar PV panels to tilt and adjust insuring maximum absorption of the suns rays during daylight hours. The Condor Energy Pod 402 has been manufactured using the highest grade of manufacturing technology available insuring a robust and durable design.

Sectors:

• Construction
• Special Events
• Oil, Gas & Mining
• Hard to Reach Areas
• Military

Benefits:

• Reduced Fuel
• Reduced Noise
• reduced Emissions
• Reduced Maintenance
• Plug & Play
• Eco-Smart
• Battery Bank
• External Power Input
• Generator Backup

Standard Features:-

• 10 x 415W - Manually extendable photovoltaic solar panels
• Hydraulically tilt-able angle arrangement of 0 - 30°
• 2 x Specially designed wind turbines each providing 400W of input power positioned on 2 x pneumatically powered telescopic masts with a reach of 7m
• Genset Model: Perkins 1103A-33G, Rated Power: 30 KVA/ 24KW, 200L Single Skin Fuel Tank.
• 9 x 5 kW LFP-MF51100D batteries with a combined storage capacity of 45 kWh
• 3 X Victron Quattro 48 V 15 kVA /200-100/100 Inverter
• 2 x CEE 32A/5P Socket(input), 3 x CEE 32A/5P Socket(output), 1 X CEE 63A/5P Socket(output), 2 X SCHUKO 16A/3P Socket (output) and Copper Terminals and 1 X CEE 125 A/5P Socket (input)
• Container loading dimensions (L*W*H) - 2975*2280*2400mm
• Overall dimensions (L*W*H) - 5900 x 6350 x 7000 mm
• Weight: 3970 Kg
