CALPEDA MXP 206 WATER PUMP MAX 65.6M H

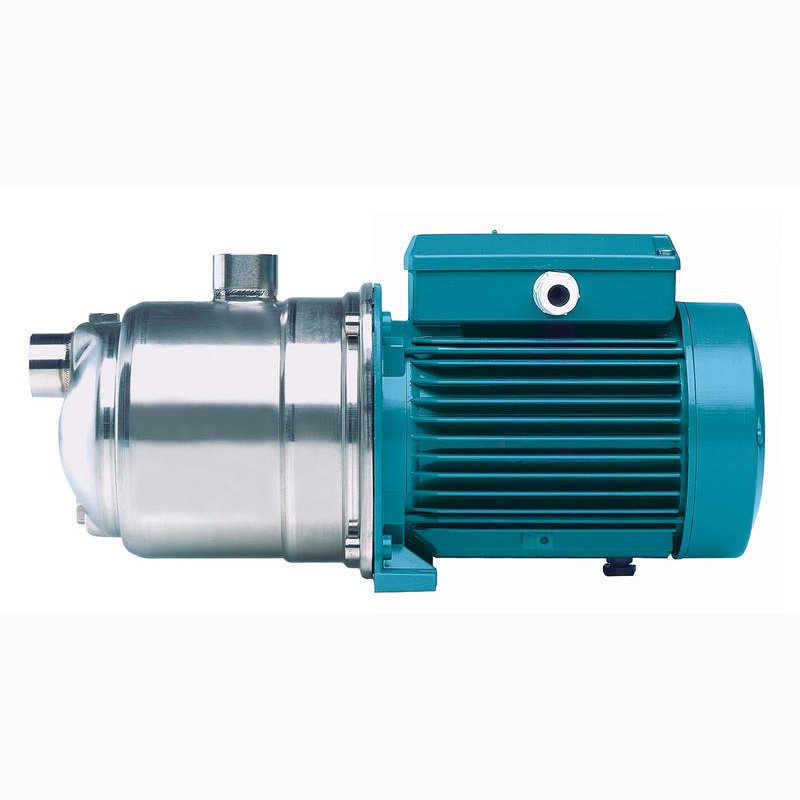

Calpeda MXP 206 Water Pump Max 65.6m Head 90L/Min
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Calpeda Pumps Ireland
What makes this 90L/Min the right choice?
Calpeda MXP 206 Water Pump Max 65.6m Head 90L/Min
These clean water horizontal multi-stage centrifugal pumps with plastic impellers are suitable for water supply. This range of water pumps are universal pump, for domestic use, for civil and industrial applications, for garden use and irrigation. This water pump has a maximum head heigh of 65.6m with a maximum flow rate of 90 l/min.
Applications
- For water supply
- For domestic use
- For garden use and irrigation
Features
- Inlet G1 1/4" / outlet G1"
- Extra safety against running dry with suction port above pump axis
- Robust - single-piece, thick barrel casing
- Compact - single piece lantern bracket and base
- Low noise with the water-filled shroud around the stages
Operating conditions
- Liquid temperature from 0 °C to + 50 °C
- Ambient temperature up to 40 °C
- Maximum permissible pressure in the pump casing: 8 bar
- Continuous duty
Motor
- 2-pole induction motor, 50 Hz (n ≈ 2800 rpm)
- MXP:three-phase230/400 V ±10% MXPM: single-phase 230 V ± 10%, with thermal protector
- Capacitor inside the terminal box
- Insulation class F. Protection IP 54
- Motor suitable for operation with frequency converter from 1,1 kW.
- IE3 efficiency class for three-phase motors (IE2 up to 0,65 kW)
- Constructed in accordance with: EN 60034-1; EN 60034-30-1. EN 60335-1, EN 60335-2-41.
Technical data
Full specifications
| Physical | |
| L × W × H | 46 × 21 × 23 cm |
| L × W × H (mm) | 462 × 214 × 225 |
| Empty weight | 13 kg |
| Reference | |
| SKU | MXP 206 |
| EDEL code | EDELP00014385 |
