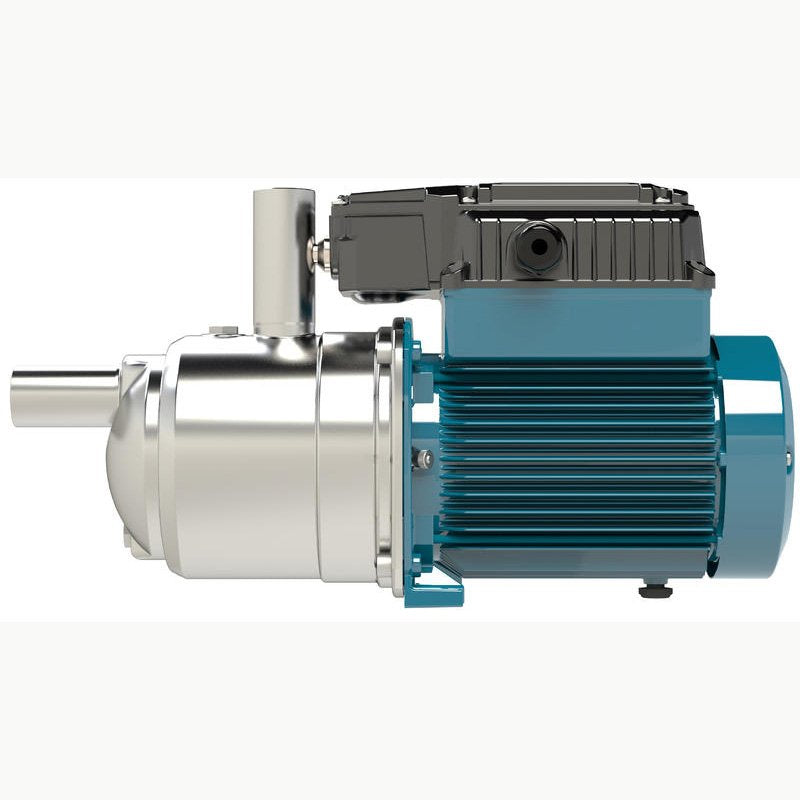

Calpeda Meta Variable Speed Booster Single Pump

Calpeda Meta Variable Speed Booster Single Pump

This pressure boosting pump is a self priming booster set with a built-in frequency converter. The Meta booster pump is a plug and play solution with the booster pump equipped with an integrated pressure transducer, an integrated check valve and a built-in pressure vessel. The VSD controls the start and stop of the pump and allows to keep a constant pressure. The Meta Booster Pump is an energy saving variable speed pump. This booster pump has a maximum head height of 55m and a maximum pumping rate of 140 l/min.

Applications

• for water supply
• for domestic use, for garden use and irrigation

Features

• 1.1kW Motor single pump
• integrated frequency converter
• built-in pressure vessel
• high efficiency asynchronous single-phase motor
• motor power control
• programmable re-start pressure
• no hydraulic losses due to the measuring devices
• voltage and current control
• monitoring of maximum starting current

Protections

• dry-run protection
• detects the presence of air in the pump casing
• overload control and overheating motor control
• pump blockage
• power supply control
• starts per hour control
• detects small leakages in the system

Operating conditions

• Liquid temperature: 0 °C to +35 °C
• Ambient temperature up to 40° C
• Maximum permissible pressure in the pump casing: 8 bar
• Continuous duty

Motor

• 2-pole induction motor
• Nominal speed 4500 rpm
• Motor: variable speed
• Frequency: 50
• Single-phase 220-240V~50Hz/220V~60Hz, with thermal protector. Cable: H07RN8-F, 3G1,5 mm2, length 1,5 m, with plug CEI-UNEL 47166.
• Insulation class F
• Protection IP X4
• Constructed in accordance with EN 60034-1, EN 60335-1, EN 60335-2-41
