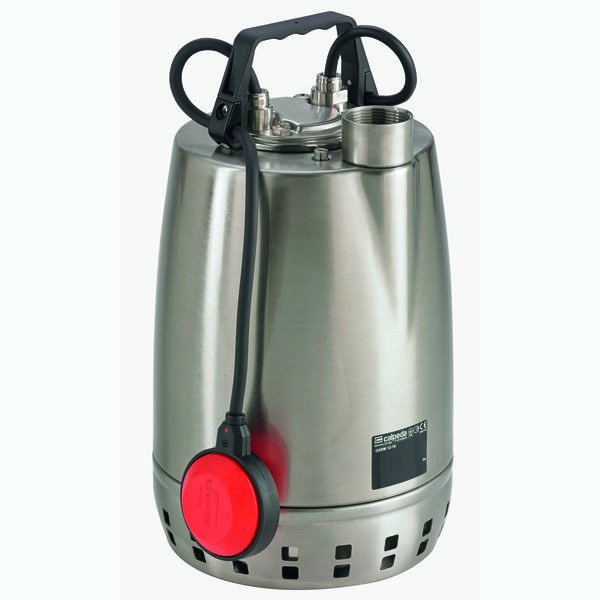

Calpeda GXR 12-10 Stainless Steel Submersible Drainage Pump
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Calpeda Pumps Ireland
What makes this Pump the right choice?
Calpeda GXR 12-10 Stainless Steel Submersible Drainage Pump with 10m Cable (240 v)
Construction
GXR Open single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port. Motor cooled by the pumped water passing between the motor jacket and the external jacket. Double shaft seal with oil chamber. Minimum dimension and high levels of performance, for use in many different applications, head up to 9.3 m and flow rates up to 300 Litres/min.
Applications
- For clean water containing solids up to 12 mm grain size.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.
- For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60335-2-41.
Operating conditions
- Liquid temperature up to 40° C.
- Maximum immersion depth: 5 m.
- Minimum water level with float: 70 mm,.
- Minimum water level manual operation: 15 mm.
- Continuous duty.
Features
- G1 1/2" vertical, upward delivery port for installation in small pits
- Easy adjustment of the float switch to allow adjustment of start/ stop pump levels
- Suction strainer with a double row of holes, for extra safety against clogging with the passage of solids up to 12mm grain size
- Handle in polypropylene with frame in stainless steel
- Easy inspection of the capacitor area
- Shaft in chrome-nickel stainless steel
- Motor cooled by the pumped water passing between the motor jacket and the external jacket
- Chamber with food/ pharmaceutical machinery oil
- Impeller in chrome-nickel stainless steel
- Double shaft seal with oil chamber separates the motor from the water and provides further protection against accidental operation when dry
Motor
- G1 1/2" vertical, upward delivery port for installation in small pits
- Rated motor power output 0.45kW
- 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
- Cable: H07RN-F, 4G1 mm2 , length 10 m, without plug.
- Protection IP X8 (for continuous immersion)
- Double impregnation humidity-proof dry winding.
- Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-4
- Options: single phase 240V or three phase 400V
Technical data
Full specifications
| Physical | |
| Diameter | 228 mm |
| Empty weight | 10 kg |
| Reference | |
| SKU | GXRM 12-10 |
| EDEL code | EDELP00092528 |
