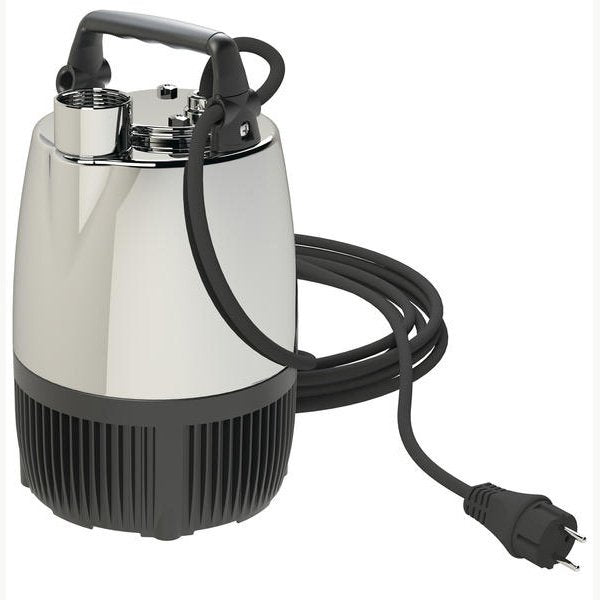

Calpeda GX Zero Submersible Clean Water Pump

Calpeda GX Zero Submersible Clean Water Pump

The Calpeda GX Zero Submersible water pump is a submersible drainage pump and clean water pump with a maximum head height of 9.8m and a maximum pumping rate of 100 l/min. This submersible pump is a single-impeller submersible pump made from chrome-nickel stainless steel with a vertical delivery port and suction non-return valve.

The motor is cooled by the pumped water passing between the motor jacket and the external jacket. The pump is fitted with a suction non-return valve which during operation. This allows the pump to be manually moved to several points in the room and draw water up to 1m avoiding the pump losing its priming.

Applications

• For clean water containing solids up to 3 mm grain size
• For draining rooms and or emptying tanks
• Extraction of water from ponds, streams or pits and for rainwater collection
• For irrigation purposes

Operating conditions

• Liquid temperature up to 35° C
• Maximum immersion depth: 5 m
• Minimum water level 1 mm
• Continuous duty.

Motor

• 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
• GX ZERO: three-phase 400 V ±10%; Cable: H05RN-F, 4G0,75 mm2, length 10 m, without plug.
• GXM ZERO: single-phase 230 V, with thermal protector. Incorporated capacitor. Cable: H05RN-F, 3G0,75 mm2, length 10 m, with plug CEI-UNEL 47166
• Insulation class F
• Protection IP X8 (for continuous immersion)
• Double impregnation humidity-proof dry winding
• Constructed in accordance with: EN 60335-2-41
