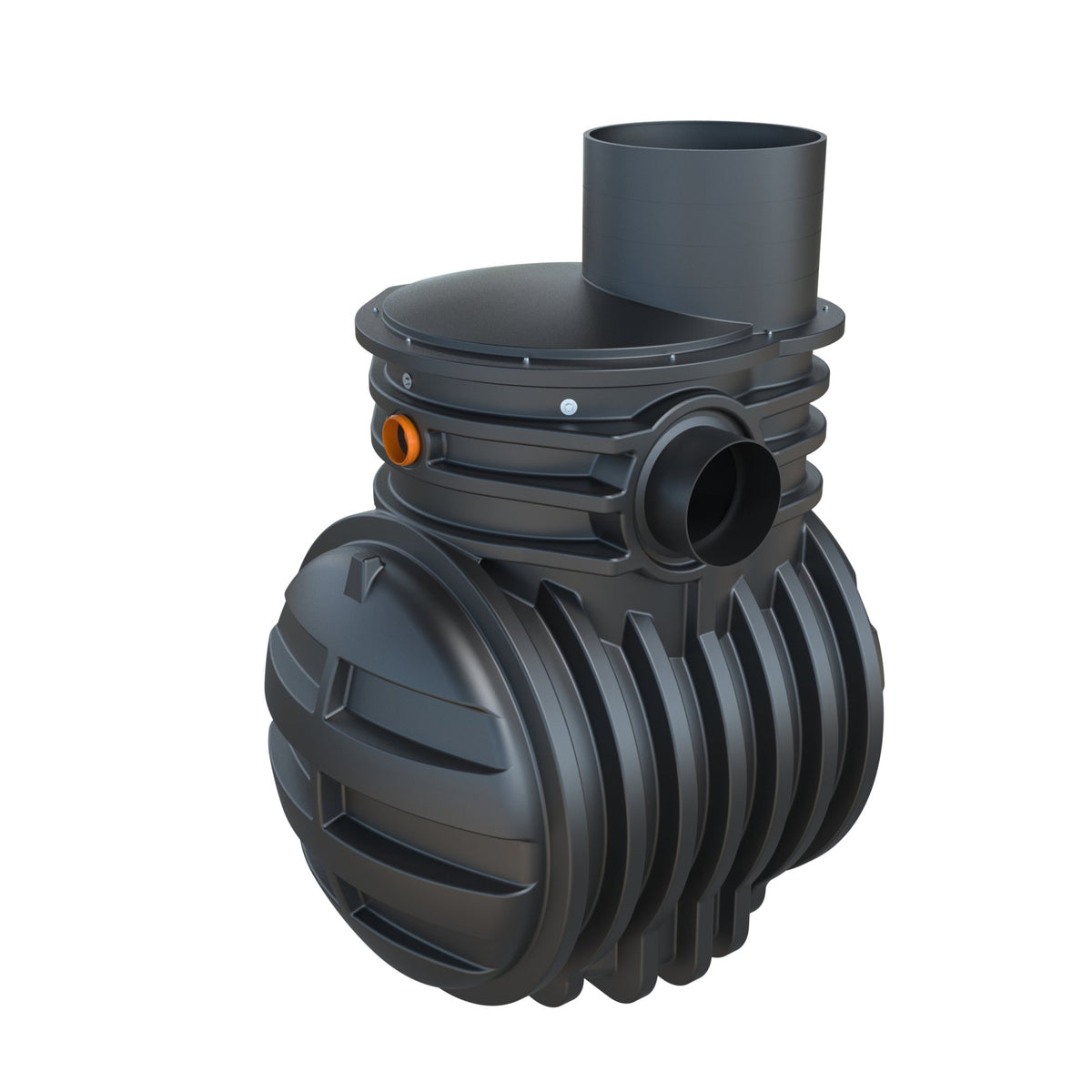

BYPASS SEPARATOR NSBP4

BYPASS SEPARATOR NSBP4

ByPass Separators fully treat all flows generated by rainfall rates of up to 6.5mm/hr. This covers over 99% of all rainfall events. Flows above this rate are allowed to bypass the separator. Each ByPass Separator design includes the necessary volume requirement for:-

• Oil separation capacity
• Silt storage capacity
• Oil storage volume
• Coalescer

Features and Benefits:

• Light and easy to install, saving you time and money
• Polyethylene Chamber Construction
• Oil alarm system available (required by EN858-1)
• Inclusive of silt storage volume
• Fitted inlet/outlet connectors
• Vent points within necks
• Extension access shafts for deep inverts
• Maintenance from ground level
• CE-marked

Specification

• Flowrate 4.5 l/s
• Peak flowrate 45 l/s
• Drainage area - 2500m2
• Storage Capacity (litres) - Silt 450l / Oil 60l
• Base to invert level - 1420mm
• Base to outlet level - 1320mm
• Min. Invert Inlet - 500mm
• Standard pipework diameter - 160mm
• Standard fall across - 100mm

Compliance:

• Fully compliant and tested to EN 858-1
• Certified flow and process performance assessing effluent qualities to the requirements of EN 858-1
• The unit is designed to treat the 'first flush' - 10% of peak flow. The calculated drainage areas served by each separator are indicated according to the formula NSB = 0.0018A(m2)
• Class 1 separators are designed to achieve a concentration of less than 5mg per litre

*DELIVERY TERMS

All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.

HIAB off-loading is available at extra cost, if requested.

It is the responsibility of the customer to inform us, if off-loading equipment is required.

DO YOU REQUIRE COMMISSIONING?

To ensure your system operates to maximum efficiency, we recommend tried and tested commissioning by Klargester own trained engineers.
Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

WHAT'S INCLUDED IN THE COMMISSIONING? CLICK HERE FOR MORE INFORMATION

Service and Maintenance:

It is essential that you ensure your separator is properly serviced and maintained to remain compliant with EN 858-1 standard and prevent pollution due to blockages. Kingspan's service and maintenance packages have been developed using their expert knowledge of their separators to help keep your separator operating at optimal efficiency, therefore remaining non-polluting and compliant. Visit Kingspan Service or contact the Kingspan Team on 0818 543 500 or for more information on the packages available.
