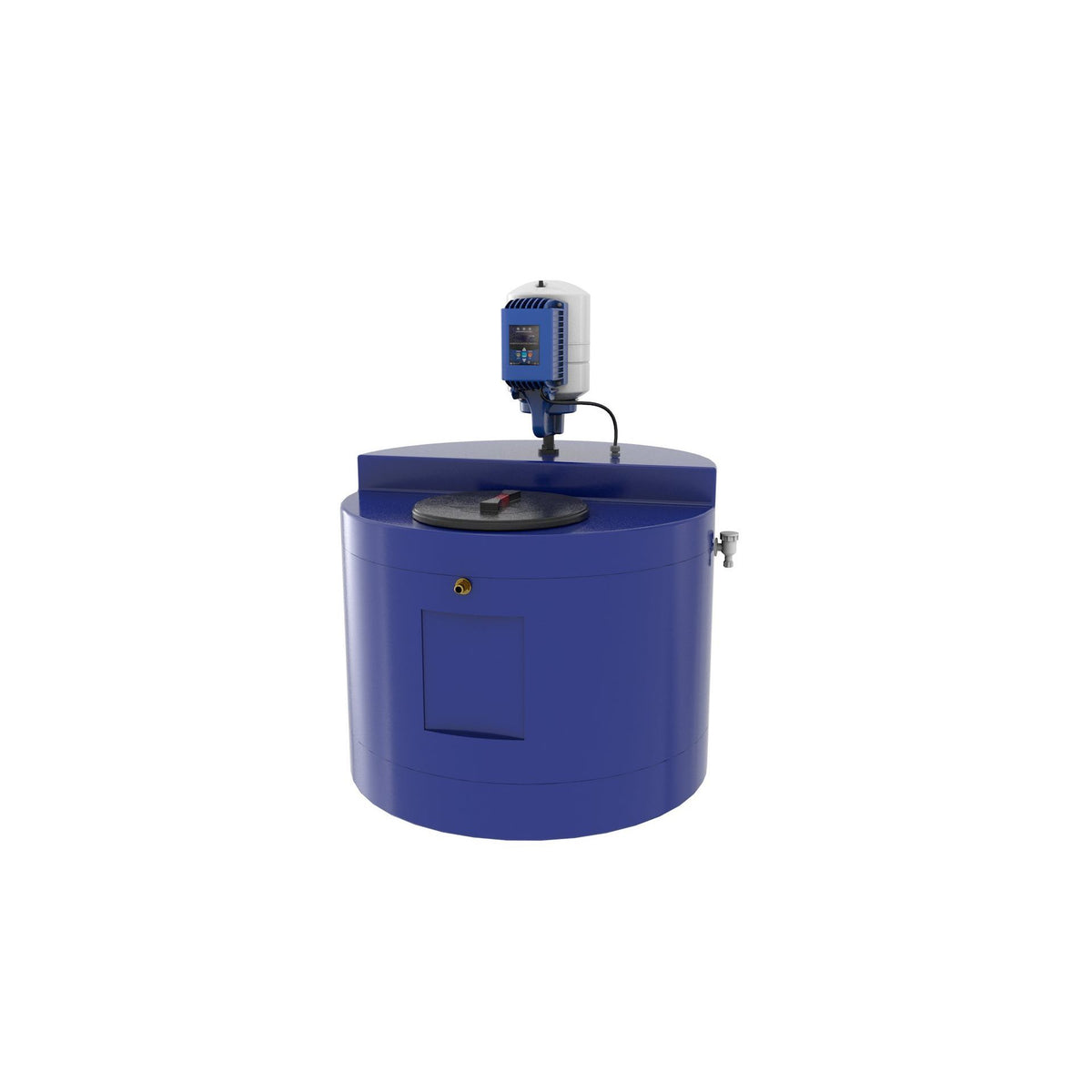

AQUAMAXX 800L BOOSTER PUMP & TANK
AQUAMAXX 800L BOOSTER PUMP & TANK
Cold water booster pump set for improving mains water pressure in domestic and commercial properties.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Direct Pumps & Tanks
What makes this TANK the right choice?
AQUAMAXX 800L BOOSTER PUMP & TANK
The Aquamaxx has been specifically designed to supply potable water for smaller properties with low water pressure and flow where space is at a premium. Areas such as apartments, cottages and townhouses would benefit the most from a compact system. The Aquamaxx system arrives pre-assembled allowing for a fast installation.
The Aquamaxx Compact fits into the space of a standard kitchen unit as they are similar in size to a washing machine so can be hidden away behind a cupboard door. The electronic controller will automatically start and stop the pump when a drop in pressure is sensed i.e. a tap or outlet is opened and closed.
FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted WRAS approved fill valve
- WRAS approved submersible pump
- Integral overflow weir
- Minimal installation requirement
- Digital display flow controller
- Dry run protection with auto restart (time delay)
- WRAS approved inverter and vessel
- Comes in single and twin options
SYSTEM CONNECTIONS
- Inlet: ½” BSP
- Outlet : 1” BSP
- Overflow: 22mm
- Single or Twin Pump
SINGLE PUMP
| Model Number | Mid Curve Flow | Mid Curve Pressure | kW Rating | Running Current (amp) | Supply Voltage | Inlet | Outlet | Overflow Size | Dry Weight |
| FV40/10 | 40l/min | 4.5 bar | 0.75 | 3.8 | 1 ph 230v 50 hz | 28mm | 1" | 40mm | 74kg |
| FV40/15 | 40l/min | 6.5 bar | 1.1 | 5.2 | 1 ph 230v 50 hz | 28mm | 1" | 40mm | 76kg |
| FV80/15 | 60 l/min | 4.5 bar | 1.1 | 5.4 | 1 ph 230v 50 hz | 28mm | 1" | 40mm | 78kg |
| FV80/20 | 60 l/min | 5.8 bar | 1.5 | 6.1 | 1 ph 230v 50 hz | 28mm | 1" | 40mm | 80kg |
TWIN PUMP
| Model Number | Mid Curve Flow | Mid Curve Pressure | kW Rating | Running Current (amp) | Supply Voltage | Inlet | Outlet | Overflow Size | Dry Weight |
| FV40/10T | 80l/min | 4.5 bar | 2 x 0.75 | 2 x 3.8 | 1 ph 230v 50 hz | 28mm | 1 1/4" | 40mm | 94kg |
| FV40/15T | 80l/min | 6.5 bar | 2 x 1.1 | 2 x 5.2 | 1 ph 230v 50 hz | 28mm | 1 1/4" | 40mm | 96kg |
| FV80/15T | 120 l/min | 4.5 bar | 2 x 1.1 | 2 x 5.4 | 1 ph 230v 50 hz | 28mm | 1 1/4" | 40mm | 98kg |
| FV80/20T | 120 l/min | 5.8 bar | 2 x 1.5 | 2 x 6.1 | 1 ph 230v 50 hz | 28mm | 1 1/4" | 40mm | 100kg |
All Aquamaxx booster sets use the IDROGO submersible pump which comprises of a stainless steel outer casing and glass fibre reinforced PPE impellers. The IDROGO electric pump is reliable and corrosion resistant. This pump is suited to residential and light commercial applications and is easy to service and maintain.
KEY FEATURES
- PPE+PS impeller with glass fibres
- Stainless steel 431 shaft (EN 1.4057)
- WRAS approved
- AISI 304 outer casing
- Carbon/ Ceramic/ Silicon/ NBR mechanical seal
Technical data
Full specifications
| Physical | |
| Capacity | 800 L |
| Diameter | 1000 mm |
| Empty weight | 74 kg |
| Construction | |
| Material | MDPE |
| Reference | |
| SKU | AQM/40/10S/800 |
| EDEL code | EDELP00002097 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
