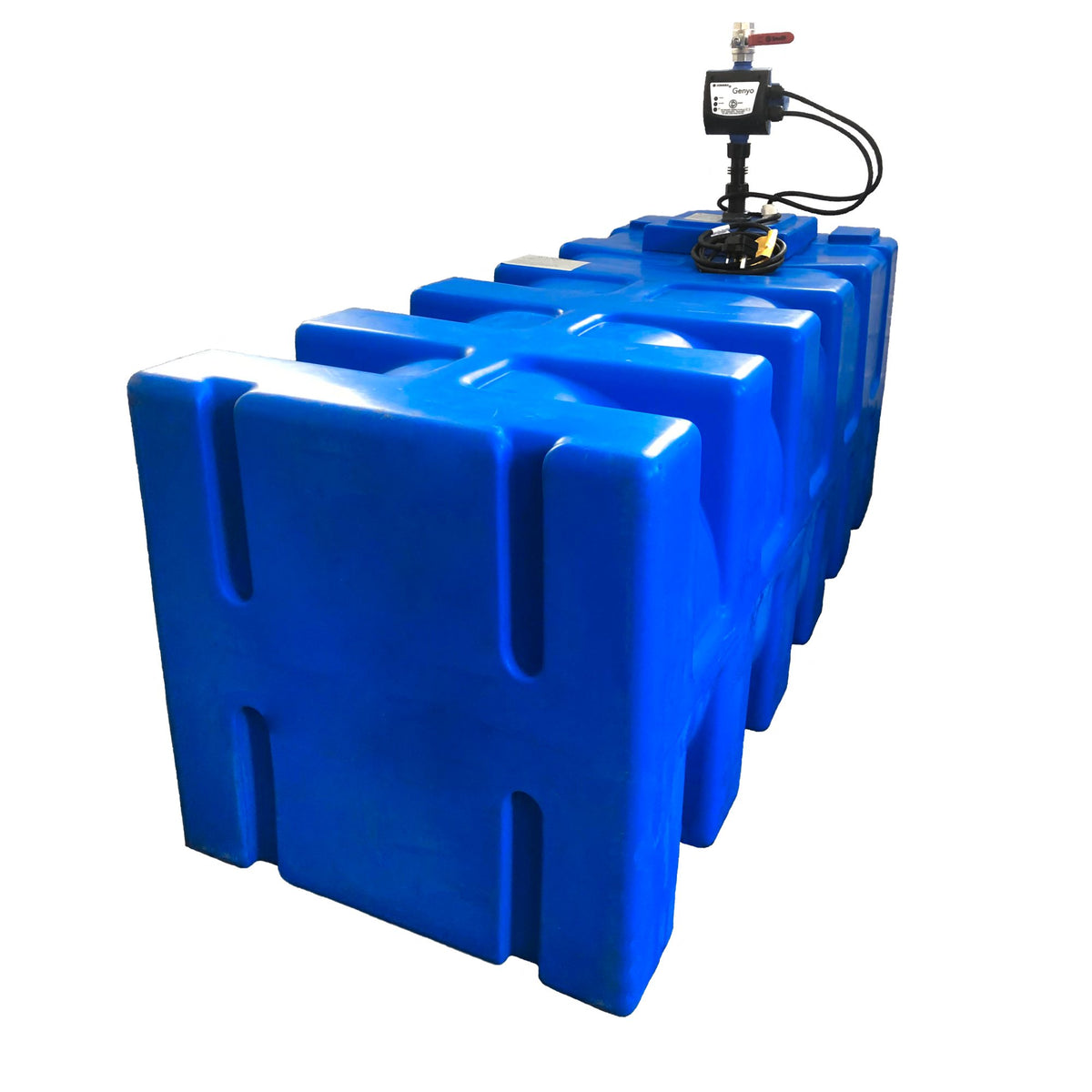

AQUABOX VERSATILE 340L HORIZONTAL

AQUABOX VERSATILE 340L HORIZONTAL
It is designed for storing clean and potable water for reliable constant water pressure and has a compact system.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Southern Pumps Ltd
What makes this HORIZONTAL the right choice?
AQUABOX VERSATILE 340L HORIZONTAL
The Aquabox Versatile Booster Pump Set is used for both domestic and commercial clean water applications. It is designed for storing clean and potable water for reliable constant water pressure and has a compact system. The Aquabox system is designed to be hassle free, creating more space and less noise and makes plumbing easy.
Features:
- Easy fit horizontal design
- Removable pump system for easy installation and servicing
- Hassle free "Plug n Play" installation
- A perfect fit though ceiling openings
- Constant water pressure and flow
- WRAS approved tank - non-corrosive, robust and ribbed tank to give strength
- Dry run protection controller with pressure gauges
- Back-up diaphragm to compensate for small leaks or drips in the hydraulic system
- Shut-off valve as standard
- Made with Eco-friendly materials and products
- 2 Year limited warranty
The Aquabox uses a 3 bar Espa pump and Brio controller.
The Aquabox Versatile tank is made from recyclable medium density polyethylene for endurance and strength. These water tanks are compact and strong while being lightweight and stable making it easy for transportation and installation.
Specification:
- Capacity: 340L
- 2.4 m3/h min / 7.2 m3/h max
- Head: 29.9 min / 10.8 max
- 3 bar
- 0.55 kw
- 0.75 HP
- 220-240 Volt
- Phase 1
Technical data
Full specifications
| Physical | |
| Capacity | 340 L |
| L × W × H | 141 × 57 × 61 cm |
| L × W × H (mm) | 1410 × 565 × 605 |
| Reference | |
| SKU | VSH001 / 103919 |
| EDEL code | EDELP00015380 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
