APOLLO VISUAL BUND OIL GAUGE

APOLLO VISUAL BUND ULTRASONIC CONTENTS GAUGE

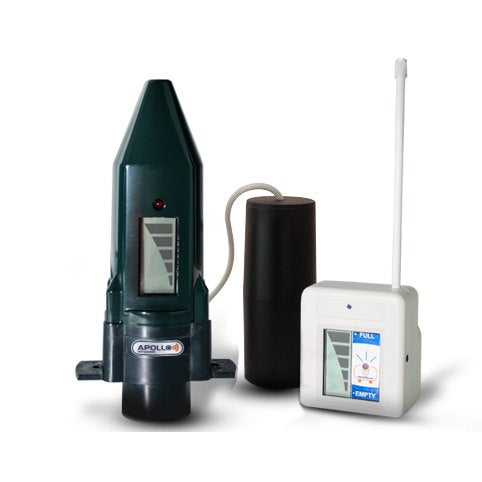

Apollo Bund is a fuel tank level monitor and bund warning alarm, cleverly integrated into a single, convenient product, which comprises a tank mounted transmitter unit, spillage detector and a plug in receiver unit.

The transmitter monitors both the level of fuel inside the tank and the area between the inner and outer tank. This data is relayed via a secure, wireless connection to the receiver unit, which cleverly and conveniently plugs into a standard electrical socket.

The receiver unit displays the level of fuel inside the tank, via an easy to read LCD display, which also includes a low level warning alert.

In the event of liquid being detected between the inner and outer tank, the receiver unit enters 'alarm mode'. The display will flash and an LED warning light is activated. Once surplus liquid in the bunded area is removed, the system automatically resets itself, with no user intervention required.

Apollo Bund is suitable for almost any bunded oil tank up to 3 metres tall and is available with either a 3 pin UK/Ireland or 2 pin European electrical socket connection. Easy to fit, the Apollo Bund can be installed in minutes and is ideal for installation on to bunded tanks at time of manufacture.

• Tank mounted ultrasonic transmitter unit, compatible with the standard 32mm port fitted to modern plastic oil storage tanks
• Optional 48mm adaptor ensures compatibility with most steel tanks
• Plug in receiver unit with integral antenna
• Transmitter is powered by a lithium battery with an operational life expectancy of up to 10 years
• Premium quality LCD receiver display, readable from a wide range of angles under varying light conditions
• Float activated bund warning monitor
• Inbuilt low level alert
• One size fits all. The Apollo Bund is suitable for almost any tank up to 3 metres tall, irrespective of manufacturer, capacity or material of construction
• Quick and easy to fit, with no specialist tools or wiring required
• Easy to use, thanks to the receiver unit's intuitive, easy to read LCD display
• The receiver unit's premium quality, on-screen LCD display, incorporates a low level warning alert with audible alarm, reducing the risk of running out of oil
• Contactless measurement technology and the absence of a direct connection to the oil supply line eliminates the risk of spills and leaks
• Integrated spillage detector alerts users to the presence of fuel and / or contaminants in the bunded area
• Adds value to any bunded oil storage tank or fuel storage installations incorporating a pre-fabricated bund
• Positioned above the maximum liquid level inside the tank, the Apollo Ultrasonic can assist in ensuring compliance with secondary containment requirements
• Ideal for monitoring heating oil and diesel but suitable too for a wide range of liquids including admixtures, agricultural fuel oil, anti-freeze, biodiesel, bio heating oil, fuel oil, detergents, lubricants, waste oil and water
• Recommended for use with pre-fabricated bunded oil tanks and other storage tank installations, where the vent point is not visible from the fill point. Suitable for fitting to tanks at time of manufacture and retrofitting to existing tanks.

Not suitable for use with single skin tanks or at fuel oil storage installations incorporating an open bund
