ANGLED FILL POINT KIT
ANGLED FILL POINT KIT
Complete installation or conversion kit with all components required. Straightforward fitting — full instructions included.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Centre Tank Services Ltd
What makes this KIT the right choice?
ANGLED FILL POINT KIT
The angled fuel tank fill point, which comes with a mounting bracket and drip cap, enables the filling of large tanks to be a simple and easy process. As they are installed into the tank, these fill points are commonly purchased by tank manufacturers.

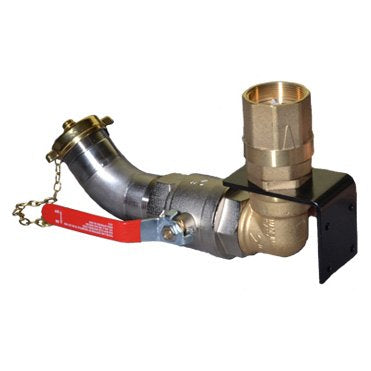

This 2' female threaded fill point is comprised of a non return valve, a four hole mounting bracket designed to fit on pre-existing 6mm lugs, lever ball valve and a custom welded 45 degree threaded fitting. There is only a very small amount of disconnect dripping from this fill point, due to the fuel being held in the 45 degree fitting.
Specifications:
- For use with diesel, kerosene and oil
- 2' female thread fill point
- C/w mounting brackets and drip cap
- Brass fill cap to stop dripping and debris from entering
- Tank fitting inlet -2' M BSP
- Outlet - 2' M BSP
- Length (mm) - 390
- Height (mm) - 200
Technical data
Full specifications
| Reference | |
| SKU | FP002 |
| EDEL code | EDELP00182267 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
