AIR OPERATED DOUBLE DIAPHRAGM PUMP
AIR OPERATED DOUBLE DIAPHRAGM PUMP
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Rotech Ltd
What makes this PUMP the right choice?

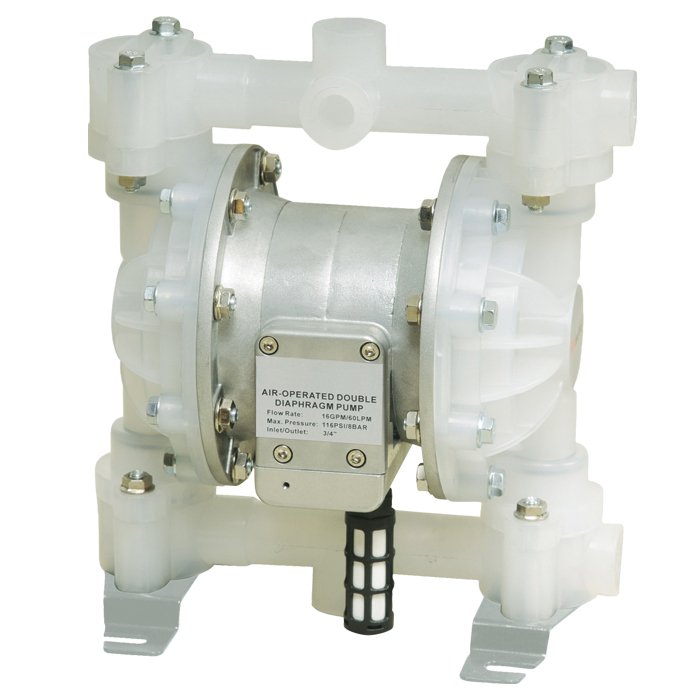

AIR OPERATED DOUBLE DIAPHRAGM PUMP
This air operated double diaphragm pump is suitable for AdBlue, antifreeze, chemicals, diesel, oils and water. It comes with a 2 year warranty.
Specification:-
- Suitable for AdBlue, antifreeze, water, diesel and oils
- Polypropylene body with viton diaphragm
- Max operating pressure 116psi / 8 Bar
- Option of 3/4'' or 1" BSP ports
- Max flow rate of 60 litres per minute on 3/4" port or 90 litres per minute on 1" port version
- Air inlet 1/4"
- 1:1 ratio
- Maximum solids pumped = 3mm dia
- 2 Year warranty
Technical data
Full specifications
| Reference | |
| SKU | APDD34 |
| EDEL code | EDELP00195357 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
