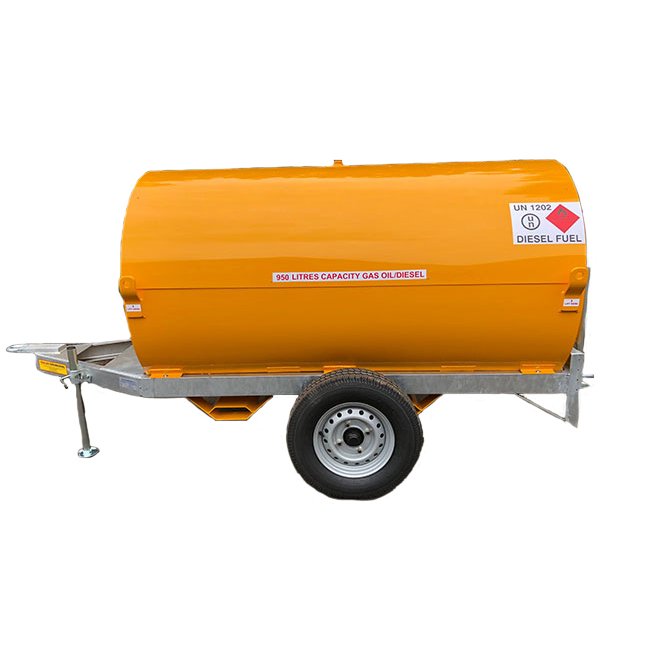

950L BUNDED DIESEL SITE TOW BOWSER

950L BUNDED DIESEL SITE TOW BOWSER

This 950 litre fuel bowser is constructed from a polyethylene inner tank to ensure a clean fuel storage solution, secured in a steel outer bund. The 950 litre fuel bowser is fully U.N. certified for 10 YEARS for the storage and transportation of fuel. This fuel bowser comes with lockable rear door, four lifting points and two fork sockets. Complete with a fully welded single axle site towable trailer. The A-frame trailer is manufactured from steel and then galvanised as standard.


Outer Tank:

• 3mm Mild Steel
• Cylindrical in section
• Removable top section
• 4 lifting eyes on tank corners
• Built-in fork truck sockets in base of tank
• Stainless steel Hinged rear access door
• Fully lockable

Inner Tank:

• Constructed from translucent heavy duty polyethylene to prevent rust contamination of the fuel
• 2" filler with cap
• 2 No. 1/2" BSP suction & return connections mounted in the top of the inner tank for generator fuel line
• Ball Valve in base of the tank to pump
• Pressure relief valve in the top of tank
• Manual vent valve fitted
• Fuel contents visible through tank wall

Pump:

• K1 Semi-Rotary hand pump c/w in line 'Y' strainer
• 15ft of 1" hose c/w trigger nozzle stowed on a bracket
• Options available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter

Finish:

• Primer
• Two top coats, single British Standard colour

Trailer:

• AXLE: Single solid beam axle welded to chassis and fitted with 4 stud unbraked hubs
• WHEELS AND TYRES: 2 No 175 x 13 x 8 ply radial tyres fitted to 4 stud 5 1/2"pcd rims
• COUPLING: 2" forged solid ring eye
• Rear Support Stand, Front Sliding Prop Stand
