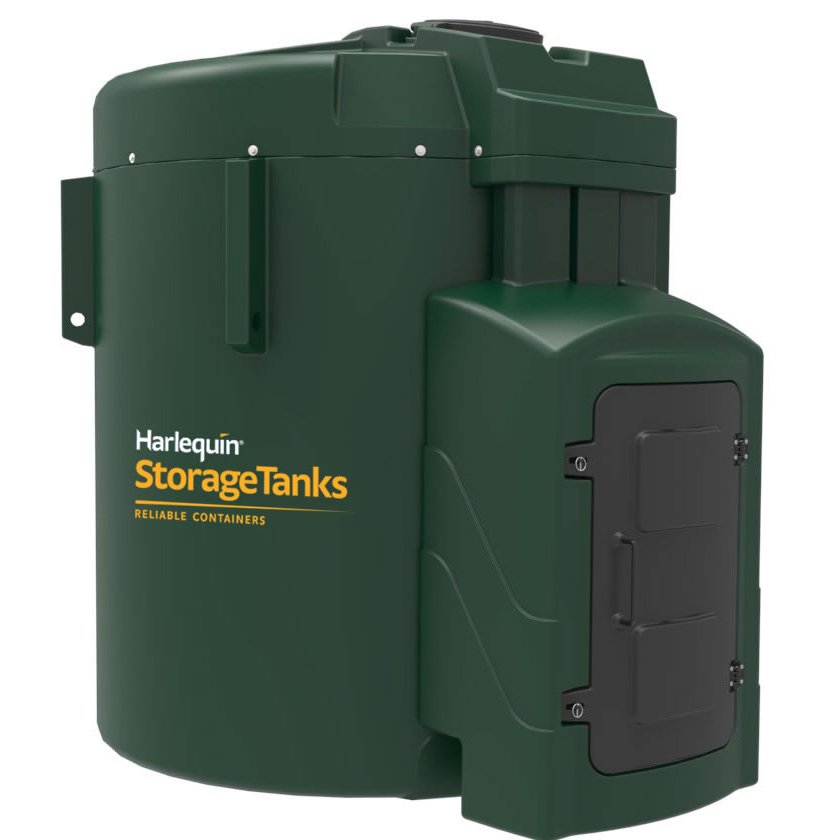

9250FS FUEL STATION
9250FS FUEL STATION
Self-contained ? diesel fuel depot with integrated bunding. Complete fuel management for farms, construction sites and commercial fleets.
Price on Application
This product requires a tailored quote. Complete the enquiry form and our team will be in touch.
Enquire About This Product
Submit the form below and our team will be in touch with pricing and availability.
Harlequin Manufacturing Ltd (Euro)
What makes this STATION the right choice?
9250FS FUEL STATION
Fuel Stations provide forecourt style refuelling convenience and come complete with a range of added value technologies as standard. Ideal for the bunded storage & dispensing of Diesel Fuel and B5 Bio-Diesel. Ideal for the bunded storage & dispensing of Diesel Fuel and B5 Bio-Diesel.
Moulded from Medium Density Polyethylene and supplied complete with:
- 240v (56lpm)
- 10 micron Integrated Particulate + Water Filter
- Tecalemit HDA Eco Fuel Management System
- Hydrostatic Oil Tank Contents Gauge
- Mechanical Overfill Prevention Valve
- Failsafe LRC Failsafe Overfill Prevention Device
- Offset 2" Fill Point with Lockable Screw Cap, Lever Type Isolation Valve and Non Return Valve
- 4" Inspection Point with Lockable Plastic Screw Cap
- Fuel Tank Vent
- Bund Warning Alarm
- Lockable Access
- 6 metre Fuel Delivery Hose with Three Stage Automatic Shut Off Nozzle
- Emergency Isolation Switch
- Bulkhead Light - 240v Models only
*DELIVERY TERMS:
Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities but are subject to availability.
All tanks greater than 2,500 Litre capacities are delivered on 45ft. Flat-bed Articulated Trailers.
HIAB off-loading is available at extra cost for deliveries of tanks above 2,500 Litre capacities, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.
Technical data
Full specifications
| Physical | |
| Capacity | 8913 L |
| L × W × H | 314 × 251 × 282 cm |
| L × W × H (mm) | 3140 × 2510 × 2820 |
| Empty weight | 600 kg |
| Construction | |
| Material | MDPE |
| Reference | |
| SKU | 9250FS |
| EDEL code | EDELP00002251 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
