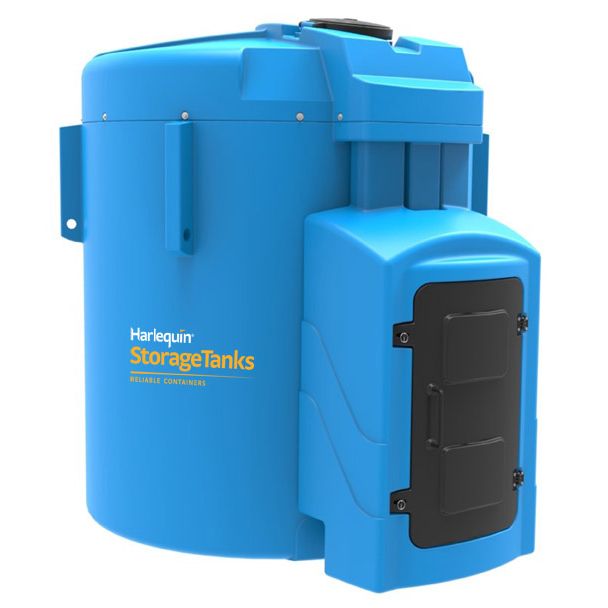

9250BS ADBLUE STATION
9250BS ADBLUE STATION
AdBlue storage solution for commercial and agricultural fleets. UV-stabilised polyethylene with full chemical compatibility.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Harlequin Manufacturing Ltd (Euro)
What makes this STATION the right choice?
9250BS ADBLUE STATION
Ideal for the bunded storage & dispensing of AdBlue. Designed specifically to satisfy the fuel storage requirements of agricultural, commercial and industrial AdBlue users. These AdBlue Stations have been engineered specially for the storage and dispensing of AdBlue - a special chemical, which requires specialist containment. These AdBlue dispensers are easy to use and easy to install on a suitable base and are ready for operation in minutes.
The 10000BS model consists of a Bunded Plastic AdBlue Storage and Dispensing Tank, moulded from premium grade of AdBlue resistant, Medium Density Polyethylene and supplied complete with:
- Integrally bunded
- 35L/min pump (230V)
- 6m length delivery hose
- Stainless steel auto shut-off delivery nozzle
- Suction hose with non-return valve and strainer
- 2' Stainless steel fill-point c/w dry break coupling
- 4' Inspection point
- Inner tank vent
- Lockable door
- Unitel Hydrostatic Contents Gauge
- Overfill Alarm
- Bund Monitor
- Optional flow meter
*DELIVERY TERMS:
Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities but are subject to availability.
All tanks greater than 2,500 Litre capacities are delivered on 45ft. Flat-bed Articulated Trailers.
HIAB off-loading is available at extra cost for deliveries of tanks above 2,500 Litre capacities, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.
Technical data
Full specifications
| Physical | |
| Capacity | 9255 L |
| L × W × H | 314 × 251 × 282 cm |
| L × W × H (mm) | 3140 × 2510 × 2820 |
| Empty weight | 600 kg |
| Reference | |
| SKU | 9250BS |
| EDEL code | EDELP00002251 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
Technical documentation
Downloads & data sheets
