1200L Above Ground Water Pump Station
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Direct Pumps & Tanks
What makes this Station the right choice?

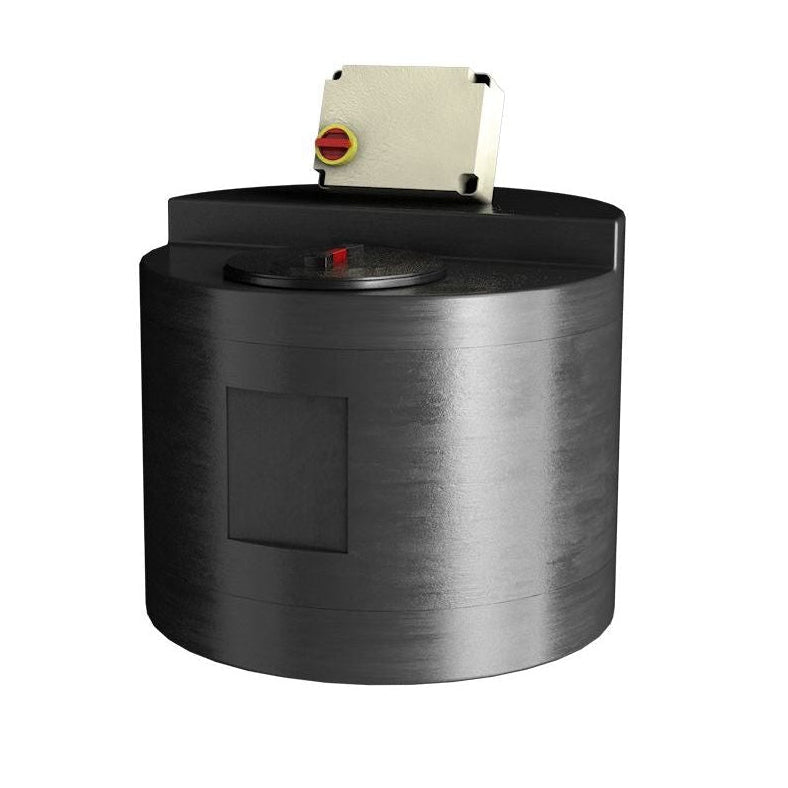

1200L Above Ground Water Pump Station
This above ground water pump station is designed to collect and pump water from an above ground system. The 800L version comes in a single or twin pump option. This pump station is also suitable to collect grey water from showers and wash-hand basin. It is not suitable for foul or sewage waters from toilets. The water pump station can collect liquid with up to 10mm solids only. The pump station is delivered as a complete unit to site including all internal pipework and the drainage pump. Pipework size is 1 1/4" for the single pump version and 2" for the twin pump version. It is designed to be installed easily and is manufactured from MDPE.
Please check your levels to make sure that you can achieve a gravity fall into the chamber as it is an above ground installation.
Typical Application:
- Residential
- Commercial
- Industrial
- Office and professional spaces
Pump Specification:
| MODEL REF | 6VX | 10VX | MC |
| Impeller Type | Vortex | Vortex | Macerator |
| Power Supply | 230 - 1 ph - 50hZ | 230 - 1 ph - 50hZ | 230 - 1 ph - 50hZ |
| Rated Power | 0.37kW | 0.75kW | 1.2kW |
| Rated Current | 1.9A | 4.0A | 9.2A |
| Max Head | 6m | 10m | 16m |
| Max Flow Rate | 5.5 l/s | 7.9 l/s | 1.8 l/s |
| Cable Length | 10m | 10m | 10m |
| Free Passage | 50mm | 50mm | Macerator |
To see our range of foul / sewage pump stations please click Pump Stations.
Technical data
Full specifications
| Physical | |
| Capacity | 1200 L |
| Diameter | 1000 mm |
| Construction | |
| Material | MDPE |
| Reference | |
| SKU | PAG1200S/AG |
| EDEL code | EDELP00002097 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
