7500L Platin Indirect Rainwater Harvesting System

7500L Platin Indirect Rainwater Harvesting System

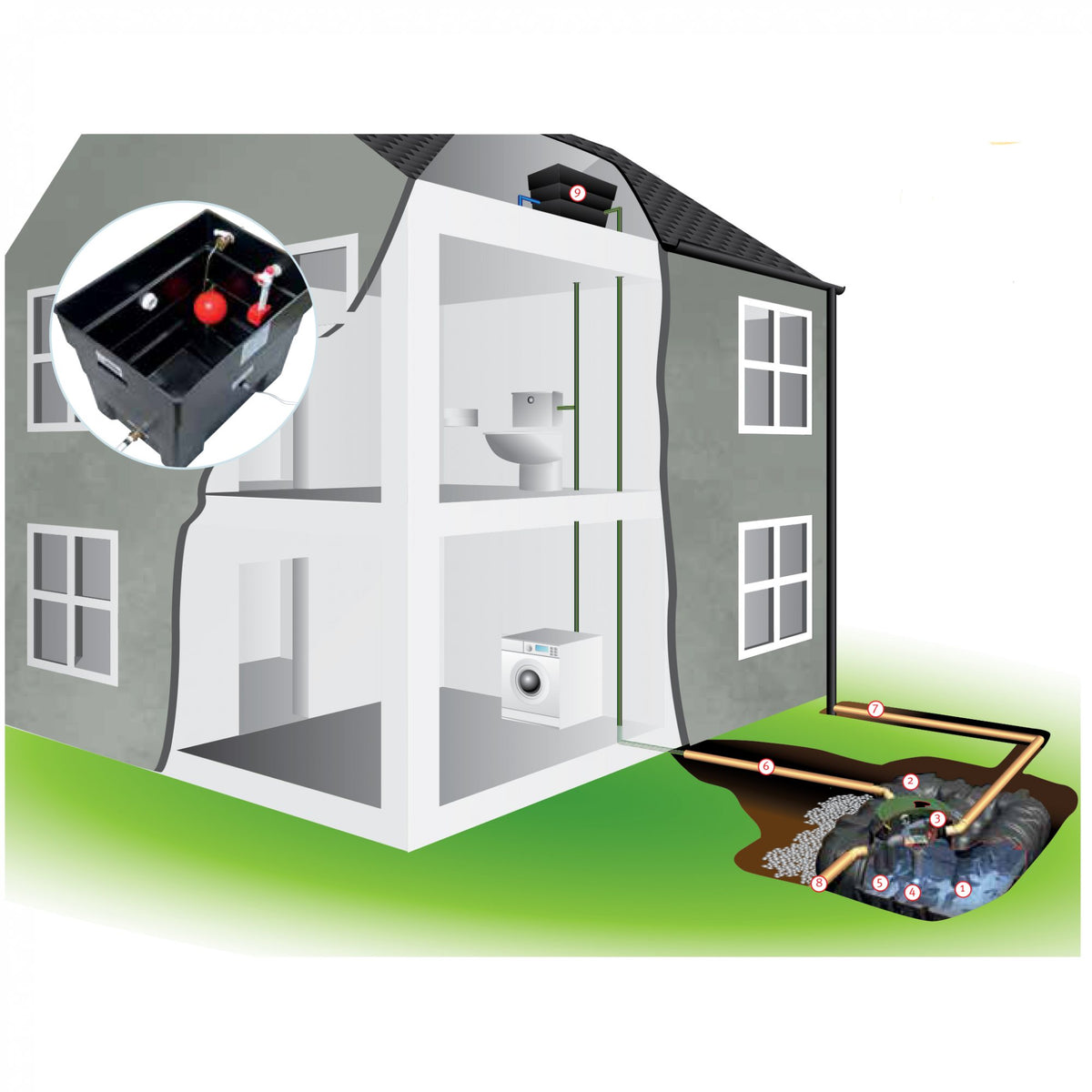

The 5000L Platin Indirect Rainwater Harvesting System is a reliable domestic solution for rainwater collection with submersible pump and header tank system that is suitable for use with toilets, washing machines, garden watering, pressure washing and car washing.

Benefits:

• Simple & quick to install
• Submersible pump supplies harvested rainwater on demand to the header tank where it is then gravity fed to the WCs & washing machine
• The header tank controls the operation of the system and the supply of harvested rainwater and backup mains water to the WCs
• Dual valve system within the header tank prioritises rainwater supply over mains water, maximising the use of all available rainwater to save on mains water consumption
• Mains water switchover point is at a lower level in the header tank when rainwater is not available from the underground Platin tank
• Mains water backup supply is not reliant on power supply or pump pressure and therefore guarantees supply of water to WCs at all times

Comes With:

• 7500L Underground tank
• Telescopic lid (choice of telescopic lid available, depending on tank location)
• Minimax filter supplied in accordance with type of tank
• Submersible pump with floating water intake
• Float switch (connected from mains water backup unit to the underground tank)
• 100mm diameter duct pipe to contain; float sensor cable, power cable for pump
• 100mm diameter drainage pipe connected from downpipes to the inlet at the top of the tank (all downpipes brought into one pipe for connection to the filter)
• 100mm diameter pipe for overflow from the tank to mains drainage network or soakaway
• Header tank package
