7500L PLATIN ECO-PLUS RAINWATER HARVES

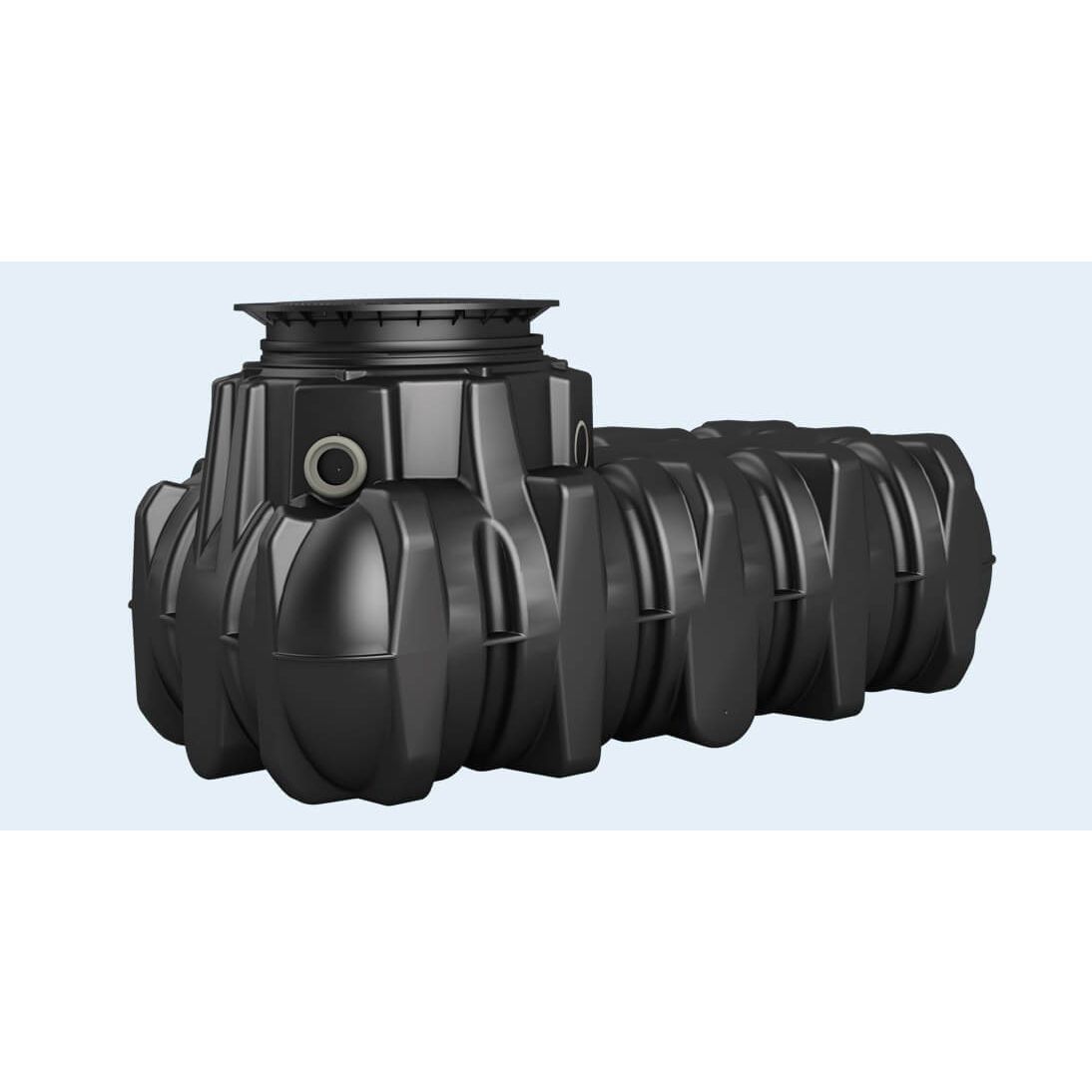

7500L Platin Eco-Plus Rainwater Harvesting System
7500L rainwater harvesting tank reducing dependency on mains water. Ideal for toilet flushing, garden irrigation and wash-down.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Graf Ireland Environmental Ltd
What makes this System the right choice?
7500L PLATIN ECO-PLUS RAINWATER HARVESTING SYSTEM
The 7500L Platin Eco-Plus rainwater Harvesting system is an underground rainwater system that is suitable for use with toilets, washing machines, garden watering, pressure washing and car washing. The Platin Eco-Plus Rainwater Harvesting System is a low cost complete solution for home and garden.
Benefits:
- Low cost complete solution
- Patented filter technology
- Switch to drinking water supply in the home when needed
- Easy to assemble due to the modular design
- Float switch controlled
- Only one cover visible on the surface
Comes with:
- Platin flat underground water tank
- Maxi dome shaft tank cover suitable for pedestrian loading
- Smooth telescopic adjustment from 445mm -755mm
- Filter package containing Minimax-pro internal self-cleaning filter, steady inflow pot, overflow siphon, Spannfix quick assembly sleeve
- Technical Package: Mains water feeding console 15/4, floating switch extraction, Wall duct DN 100, Labelling set, Suction pipe 25m, Black & Green labelled RAINWATER
Technical data
Full specifications
| Physical | |
| Capacity | 7500 L |
| L × W × H | 360 × 225 × 157 cm |
| L × W × H (mm) | 3600 × 2250 × 1565 |
| Empty weight | 360 kg |
| Reference | |
| SKU | 7500LPlatinEco-PlusRHS |
| EDEL code | EDELP00021783 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
Technical documentation
Downloads & data sheets
