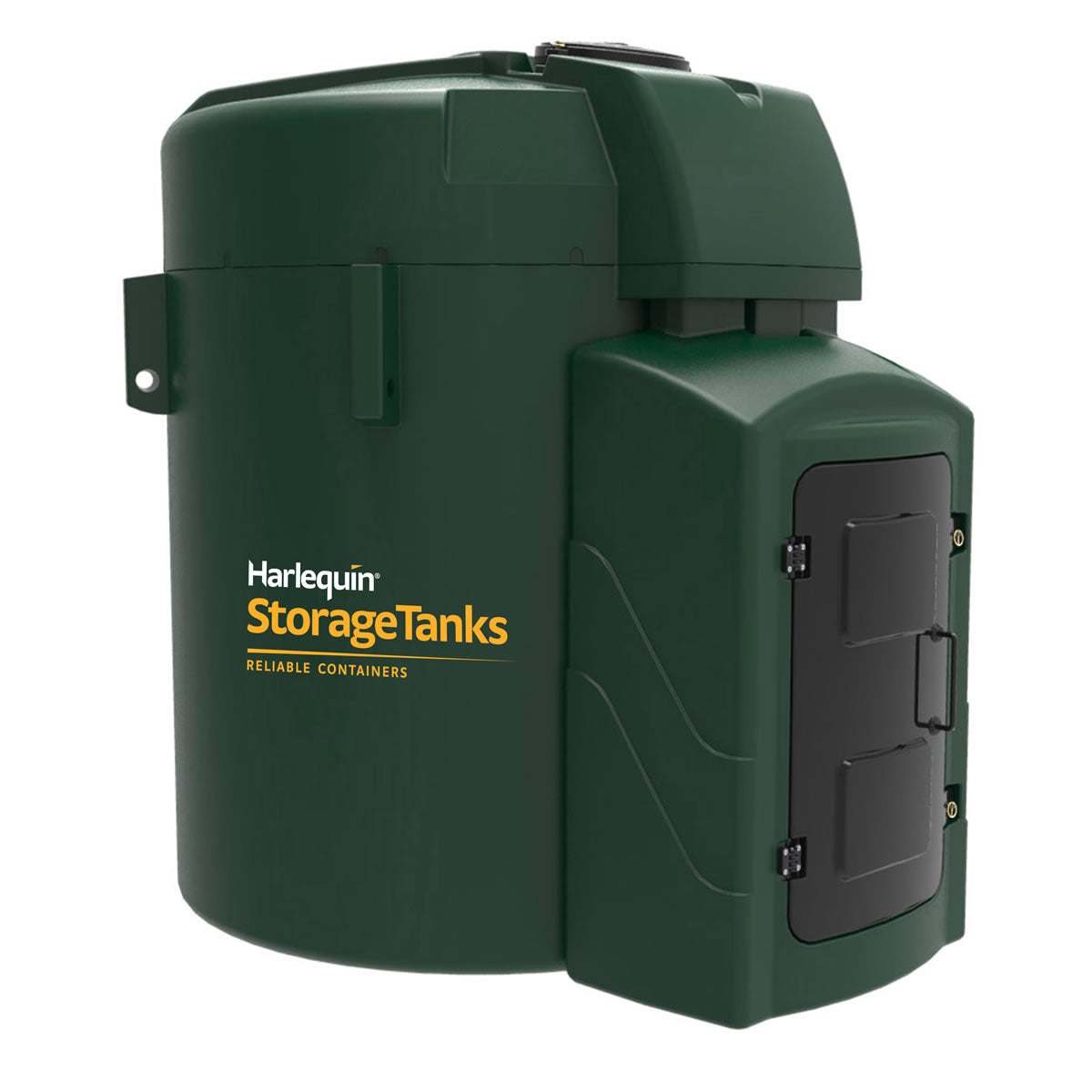

7500FS FUEL STATION
7500FS FUEL STATION
Self-contained ? diesel fuel depot with integrated bunding. Complete fuel management for farms, construction sites and commercial fleets.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Harlequin Manufacturing Ltd (Euro)
What makes this STATION the right choice?
7500FS FUEL STATION
Fuel Stations provide forecourt style refuelling convenience and come complete with a range of added value technologies as standard. Ideal for the bunded storage & dispensing of Diesel Fuel and B5 Bio-Diesel.
Specification:
- Moulded from durable medium density polyethylene material
- Integrally bunded
- Lockable equipment cabinet
- 56L/Min 230V fuel pump
- Tecalemit HDA Eco Fuel Management System
- 10Micron particulate & water filter
- 6m delivery hose with auto shut-off dispensing nozzle
- 2" BSP(M) offset fill point c/w non-return valve & lever ball valve
- Mechanical overfill prevention valve
- 4" lockable inspection cap
- Hydrostatic contents gauge with in-cabinet digital display
- Bulkhead light
- LRC overfill prevention probe
- Bund monitor
- Moulded-in lifting eyes for ease of lifting
*DELIVERY TERMS:
Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities but are subject to availability.
All tanks greater than 2,500 Litre capacities are delivered on 45ft. Flat-bed Articulated Trailers.
HIAB off-loading is available at extra cost for deliveries of tanks above 2,500 Litre capacities, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.
Technical data
Full specifications
| Physical | |
| Capacity | 7683 L |
| L × W × H | 294 × 231 × 282 cm |
| L × W × H (mm) | 2940 × 2305 × 2820 |
| Empty weight | 505 kg |
| Construction | |
| Material | MDPE |
| Reference | |
| SKU | 7500FS |
| EDEL code | EDELP00002251 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
