650 LITRE BUNDED OIL TANK
650 Litre Bunded Oil Tank
650L bunded oil tank with 110% secondary containment. Required for most Irish domestic and farm oil storage — fully compliant with IS:293.
Tank type
Bunded
Material
MDPE
Warranty
10 years
Fuel type
Diesel / Gas Oil / Heating Oil
Capacity
650L
L · W · H (cm)
126 × 63 × 135
Empty weight
85kg
Your price · ex VAT
€800.00
Energy Surcharge Applies
Added at checkout — covers HiAB unload & tank positioning.
€100.0 ex VAT (€123.0 inc VAT)
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Quantity
Buying 3+? Get a trade quote →
OFTEC approved
Cert · OFT-T100
10 years warranty
Registered on delivery
Free nationwide delivery
ROI — excl. islands
Expert advice
Call Us
Kingspan Energy
What makes this Tank the right choice?

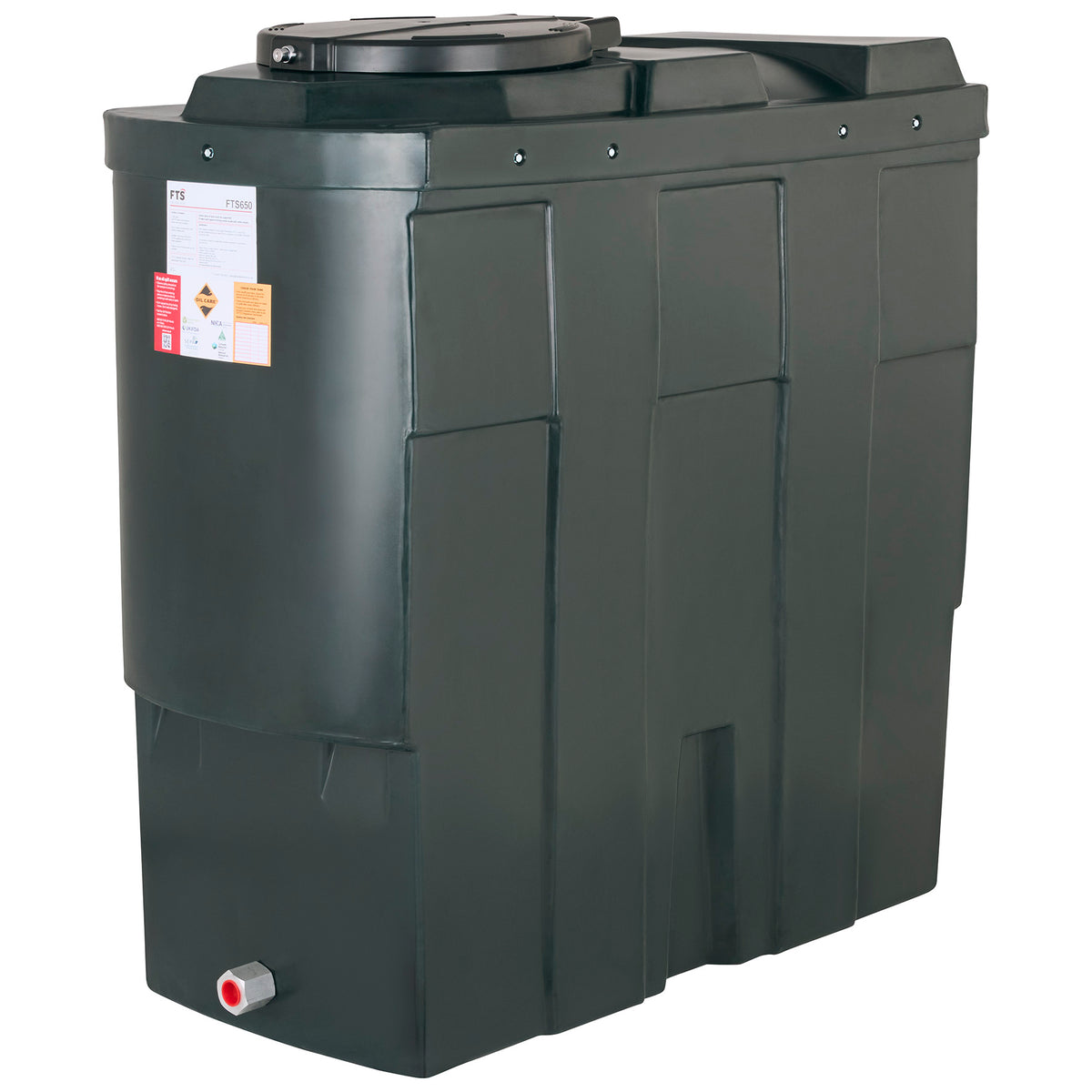

FTS650 Slim Bunded Oil Tank
FTS650 650 Litre Bunded Heating Oil Tank 650 litre (143 gallons) bunded kerosene storage tank. This quality bunded heating oil tank is suitable for both domestic and commercial fuel oil storage
Approved to BS EN 13341: for use in installations for the storage of fuel intended for the supply of building heating/cooling systems.
Manufactured from high grade polyethylene, this bunded oil tank is corrosion resistant, has high impact strength and is UV stabilised. All FTS tanks are CE marked and comply with the latest European standards.
An own brand, competitively priced bunded 650 litre oil tank is a high-quality and cost-effective solution for the safe storage of heating oil, diesel or other fuels. This tank features a double-layered design, with an outer tank and an inner tank separated by a bund, which provides a secondary containment area for any spills or leaks.
Supplied complete with:
- Inner tank 4" inspection cap
- 2" Vent
- 1" BSP Bottom Outlet
- Lockable Manhole Cover
Suitable for:
- Kerosene (C1/C2)
- Fuel Oil (A2)
- Gas oil / Diesel (D)
- Biofuel as defined in BSEN2869, BSEN590 & BSEN15940
- Compatible with HVO (Hydrogenated Vegetable Oil)
FTS650 Specifications
| Brim-Fill Capacity | 155 Gal / 703 L |
| Nominal Capacity | 143 Gal / 650 L |
| Max-Fill Capacity | 668 L |
| Dimensions (mm) | H: 1350 W: 630 L:1300 |
| Weight (kg) | 125 |
| Footprint (mm x mm) | 1170 x 605 |
Technical data
Full specifications
| Physical | |
| Capacity | 650 L |
| L × W × H | 126 × 63 × 135 cm |
| L × W × H (mm) | 1260 × 630 × 1350 |
| Empty weight | 85 kg |
| Construction | |
| Material | MDPE |
| Colour | Green |
| Shape / orientation | Horizontal |
| Outlet size | 1" |
| Ordering & delivery | |
| Made to order | Yes — extended lead time applies |
| Customer off-loading | Required — see delivery terms |
| Reference | |
| SKU | FTS650BT |
| EDEL code | DELIVERY |
Irish regulations
Installation & requirements
01
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
02
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
03
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
