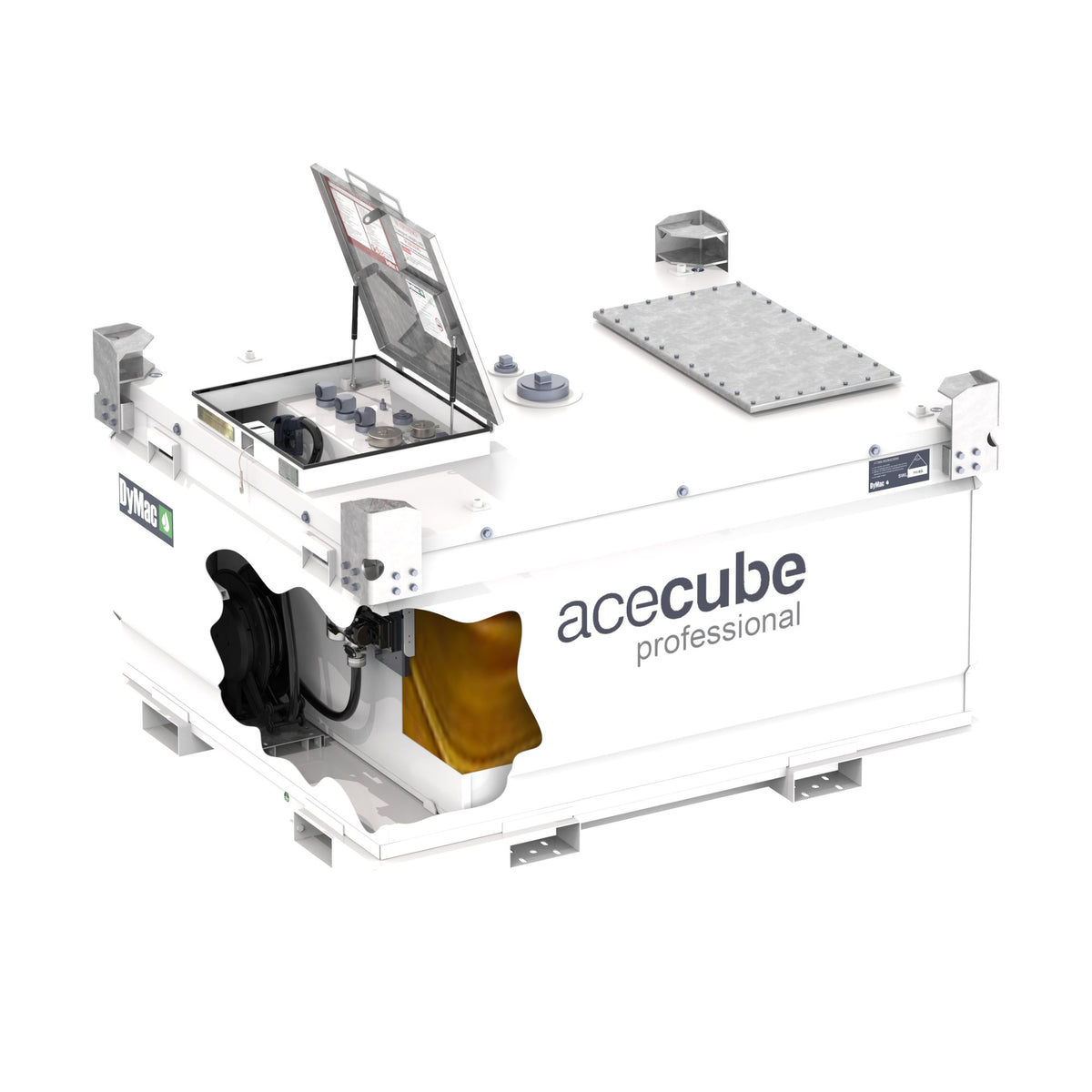

5300L ACECUBE PROFESSIONAL

5300L ACECUBE PROFESSIONAL

AceCube Professional ACP-5300L is designed for the safe and secure storage of various industrial lubricants and hazardous liquids worldwide. This IBC 110% bunded fuel storage tank is a transportable cube style tank for refuelling. The AceCube Professional Tank comes with stacking corners and allows the the primary hatch lid to open up to give access to the component ports plate with access to an extra large equipment compartment area. This professional range of the AceCube Tanks is also fitted with a secondary plate as standard to allow the fitting of a secondary sump tank to carry Ad-blue.

The AceCube Professional Tank Range is the go to fuelling solution across the construction, industrial and farming sectors. The tank can be used for any number of direct fuelling applications, including providing bulk fuel supply to on-site water pumps or critical power generators. The AceCube Professional Tank Range is widely used as a backup fuel source in emergency situations. Its flexible and innovative design allows it to be easily transported while empty and they have been design to stack and rack across truck beds and to fit inside shipping containers, allowing them to be easily loaded for fast deployment. The AceCube Professional Range is also the perfect choice for a secondary or standby fuel source as the innovative system design protects against spillage and fume evaporations or emissions through the valves and venting systems, making it the ideal choice for standby fuel storage on quarries, building sites or farms.

Suitable for:

• Equipment Rental
• Diesel Generator Power
• Municipalities
• Construction
• Fuel Distribution

Dispensing

The AceCube Professional tank comes with a spacious equipment chamber which engages a bespoke universal bracket system that can support retractable hose reels, along with a variety of pumps and dispensing kits

Maintenance

To ensure efficient and unencumbered cleaning, maintenance and inspection, the three tier component design allows the inner tanks to be completely removed and disconnected ensuring minimal downtime.

Stacking

All AceCube professional tanks are designed to be stackable 2 x Cubes high when empty and 1 x Cube high when full. These stackable corners double up as lifting lugs for ease of manoeuvrability.

Transportation

This AceCube Professional tank is a bunded fuel storage transportable tank range and is used for fuelling in a permanent position. It is safely transportable when full of fluids. This refuelling tank comes with a bidirectional forklift pocket design and comes with internal baffle plates for protection against sloshing when transporting.

Specification

• Nominal Capacity - 5201 Litres, Useable capacity - 4940 Litres
• Outer Tank Thickness - 3mm
• Inner Tank Thickness - 3mm
• Empty Weight - 1603kg
• Feed - 1.1/2“BSP Pipe Block with 1” Port & Galvanised Metal Stopper, 1” Feed MS Downpipe, HDPE NRV & 1.1/2” Internal Threaded Coupling
• Feed - 2 X 1.1/2” BSP Pipe Block with 1/2” Port & Galvanised Metal Stopper, 1/2” Feed MS Downpipe with HDPE NRV & 1.1/2” Internal Threaded Coupling
• Return - 1.1/2” BSP Pipe Block with 1/2” Port & Galvanised Metal Stopper, 1.1/2” Internal Threaded Coupling
• Fill - 3” BSP Galvanised External Threaded Pipe with 3” BSP Fusible Cap
• Level Gauge - 1.1/2” BSP Internal Threaded Coupling with Level Gauge
• Fill Vent - 2” BSP Galvanised Threaded Pipe with 2” BSP Cap
• Pressure Vent - 2” NPT Internal Threaded Coupling with 2” Pressure Vent
• Emergency Vent - 1/4” BSP Internal Threaded Coupling with 1/4” E-Vent (Actuate)
• Pump Antisiphon - 1/8” BSP Internal Threaded Coupling with 1/8” MS Galvanised Plug
• Spare - 2” BSP Internal Threaded Coupling with 2” MS Galvanised Plug
• Spare - 1.1/2” BSP Internal Threaded Coupling with 1.1/2” MS Galvanised Plug

Approvals & Certifications

• Specifically designed for refuelling remotely on-site, these portable tanks are approved and tested to meet the needs of the European Agreement (ADR) for the international Carriage of Dangerous Goods by Road*. Industry Leading - ADR* Approved - UN31A/Y - Mobile IBC
• CE Marked - Machinery Directive 2006/42/EC, LVD Directive 2014/35/EU, EMC Directive 2014/30/EU

Dispensing Equipment Option comes with:-

• 12V/230V Diesel 56lpm Electric Pump
• 4m x 3/4" Delivery Hose
• Automatic 56 lpm Dispensing Nozzle
• 1 x 1.5m 1" Suction hose with camlock device
• 2m Power Cable with positive and negative battery clips

If you have any specific requirements, please let us know and we can specify accordingly.

Price is ex-works from Co. Dublin. Delivery to site can be arranged at an additional cost. Please talk to our sales team to discuss delivery options.
