4WAY INDEX VALVE

4way index valve
WAY INDEXING VALVE This 4 Way Indexing Valve is a reliable, economical way to automate multiple zoned residential and small commercial irrigation systems.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Polylok Ltd
What makes this valve the right choice?

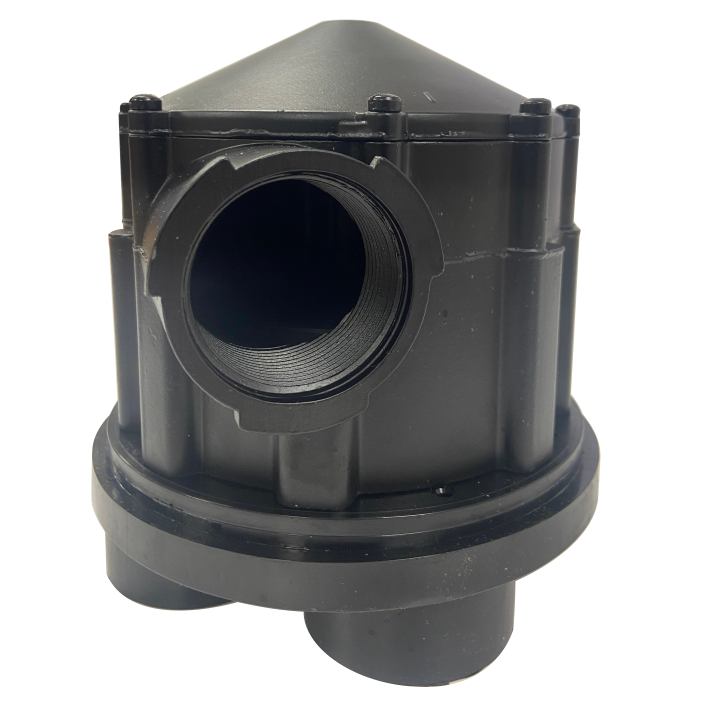

4 - WAY INDEXING VALVE
This 4 Way Indexing Valve is a reliable, economical way to automate multiple zoned residential and small commercial irrigation systems.
These indexing valves allow for the number of watering zones to be changed quickly and easily. Ideally suited for both city water and pump applications, and may also be used for onsite wastewater or effluent water applications. The simplicity of design and few moving parts ensures ease of maintenance and long service life.
- ABS Polymer Construction – High-strength, non-corrosive body for long product life
- Available in 4 Outlet Model – Can quickly and easily change from two to six watering zones
- Simplicity of Design – Valves are easily maintained and serviced for long product life
- Operates at Low 10 GPM (38 LPM) at Pressures of 25-75 PSI (1,7-5,2 bar) – Reliably automates multiple zoned residential and small commercial irrigation or wastewater systems
- Inlet connection - Female 1.5" NPT
- Outlet connections - Plain slip and glue connection for 1.5" PVC Pipe
- Note: Supplied with no connection fittings, pipe etc:
Technical data
Full specifications
| Reference | |
| SKU | 4WIV |
| EDEL code | EDELP00001505 |
