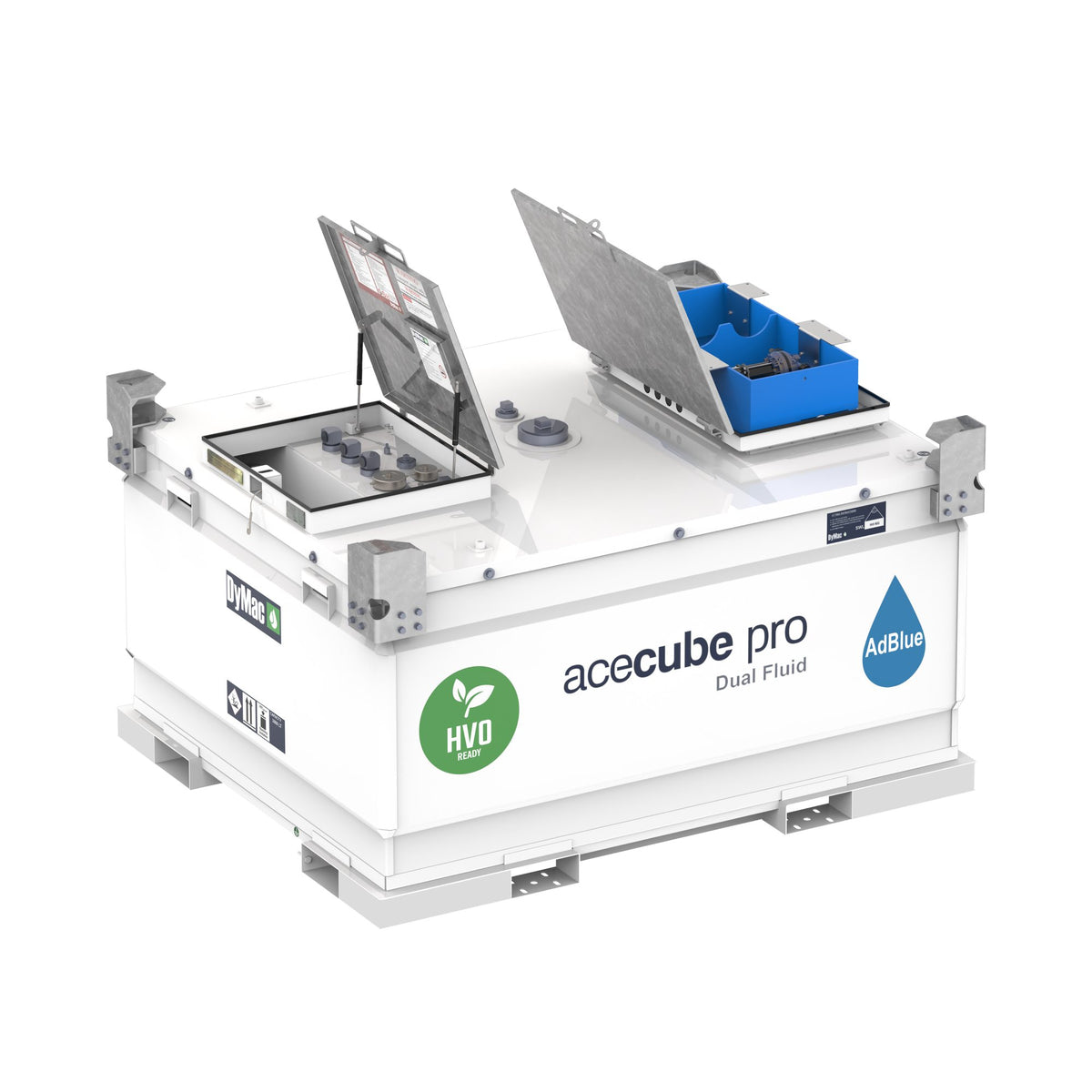

4070/250L ACECUBE PROFESSIONAL DUAL FLUID

4070/250L ACECUBE PROFESSIONAL DUAL FLUID

The Transportable AceCube Dual fluid tank range is ideally suited to meet the on-site refuelling needs of construction equipment for both diesel and ad-blue. The AceCube Professional Dual Fluid tank is an IBC transportable fuel storage tank, 110% bunded and comes with a completely unique removable inner tank. Also features a large secondary hatch lid opening. Tank come's complete with an easily removable Internal bracket plate predrilled to accommodate a range of Piusi or fillrite pump kits. The AceCube Professional Dual Fluid tank can accommodate a 10M retractable hose reel with dispensing nozzle secured inside the equipment bund area.

Suitable for

• Equipment Rental
• Diesel Generator Power
• Municipalities
• Construction
• Fuel Distribution
• Mining & Quarrying
• Military
• Oil and Gas

AceCube Professional 4070L Tank comes with:-

• Capacity - 4039 Litres
• Outer Tank Thickness - 3mm
• Inner Tank Thickness - 3mm
• Empty Weight - 1588kg
• Safe Fuel Fill Level - 3837 Litres
• Dimensions: L 2650mm x W 2300mm x H 1295mm
• Feed - 1.1/2“BSP Pipe Block with 1” Port & Galvanised Metal Stopper, 1” feed MS Downpipe, HDPE NRY & 1.1/2” Internal Threaded Coupling
• Feed – 2 x 1.1/2” BSP Pipe Block with 1/2” Port & Galvanised Metal Stopper, 1/2” Feed MS Downpipe with HDPE NRY & 1.1/2” Internal Threaded Coupling
• Return – 1.1/2” BSP Pipe Block with 1/2” Port & Galvanised Metal Stopper, 1.1/2” Internal Threaded Coupling
• Fill- 3” BSP Galvanised External Threaded Pipe with 3” BSP Fusible Cap
• Level Gauge – 1.1/2” BSP Internal Threaded Coupling with Level Gauge
• Fill Vent - 2” BSP Galvanised Threaded Pipe with 2” BSP Cap
• Pressure Vent – 2” NPT Internal Threaded Coupling with 2” Pressure Vent
• Emergency Vent – 1/4” BSP Internal Threaded Coupling with 1/4” E-vent (Actuate)
• Pump Antisiphon – 1/8” BSP Internal Threaded Coupling with 1/8” MS Galvanized Plug
• Spare - 2” BSP Internal Threaded Coupling with 2” MS Galvanised Plug
• Spare – 1.1/2” BSP Internal Threaded Coupling with 1.1/2” MS Galvanised Plug

AceCube Professional Plastic 250L Tank comes with:-

• Capacity - 250 Litres
• Dimensions: L 875mm x W 414mm x H 1040mm
• Vent - 1 x 1/4" BSP Vent with Threaded Plug
• Spare - 2 x 3/4" BSP Spare with Threaded Plug
• Spare - 1 x 1" BSP Spare with Threaded Plug (for 250l tank only)
• Suction – 1 x 1/2" Suction Line Assembly Screwed to 2 1/4" BSP External Threaded Coupling.
• Suction – 1 x 1/2" Suction Line Assembly Screwed to 2 1/4" BSP External Threaded Coupling (for 270l tank only)
• Fill - 1 x 2" BSP Fill with Threaded Plug
• Dipstick - 1 x 1/2" BSP Port with 1/2" Dip Stick

Dispensing & Accessibility

The AceCube Professional Dual Fluid Tank allows for the installation of 2 x electric pumps with a dispensing kits located on each gable end, an AdBlue electric pump and Diesel electric pump. It also has an extremely spacious equipment compartment section to accommodate a 10M retractable hose reel.

Maintenance & Environment

To ensure efficient and unencumbered cleaning, maintenance and inspection the ingenious three tier component design allows the inner tank to be completely removed and disconnected. This flexible design ensures a minimal amount of downtime.

Transportable & Portable

The Transportable AceCube dual fluid tank can be easily positioned onto a dedicated twin axle trailer to allow for easy transportation when full of fuels.

Safety

The AceCube Professional Dual fluid Smart Tank is comprised of two large galvanised hatch lids, located at each end of the tank. It also employs heavy duty locking devices to deter any potential vandals.

Approvals & Certifications

• Specifically designed for refuelling remotely on-site, these portable tanks are approved and tested to meet the needs of the European Agreement (ADR) for the international Carriage of Dangerous Goods by Road*. Industry Leading - ADR* Approved - UN31A/Y - Mobile IBC
• CE Marked - Machinery Directive 2006/42/EC, LVD Directive 2014/35/EU, EMC Directive 2014/30/EU

Dispensing Equipment Option comes with:-

• 12V/24V Diesel Electric Pump
• 4m x 1" Delivery Hose
• Automatic 56 lpm Dispensing Nozzle
• 2m Power Cable with positive and negative battery clips
• Digital Flow meter
• Inline particle and water separator filter

AdBlue Dispensing Equipment Option comes with:-

• 12V AdBlue Electric Pump
• 4m x 1" Delivery Hose
• 32 lpm Manual Dispensing Nozzle
• 2m Power Cable with positive and negative battery clips

If you have any specific requirements, please let us know and we can specify accordingly.

Price is ex-works from Co. Dublin. Delivery to site can be arranged at an additional cost. Please talk to our sales team to discuss delivery options.
