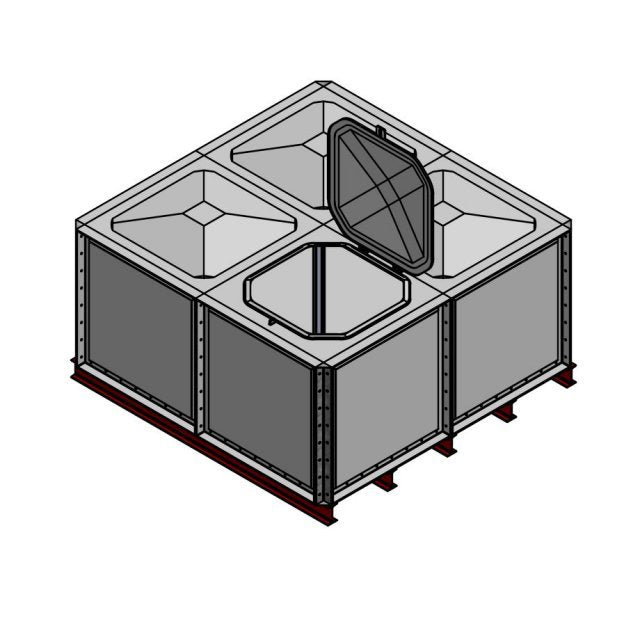

4000 Litre GRP Sectional Water Tank, Internally Flanged Base (IFB)

4000 Litre Sectional Water Tank, Internally Flanged Base (IFB)

4000 Litre GRP Sectional Water Tank, a sectional tank with an internally flanged base and externally flanged sides. Modular construction utilising bolt together panels suitable for on-site assembly. Comes with man way access

These sectional tanks are insulated and WRAS approved for use with potable water. These water tanks are suitable for a variety of applications including process cooling, rainwater harvesting and many other systems and processes where containment of water is necessary. All gaskets, seals and fixings for assembly are included. Only available for self-assembly.

IFB tanks are suitable for positioning onto a flat, level and continuous foundation, normally a structural concrete slab.

IFB tanks require a minimum of 500 mm working clearance all around the tank, a minimum of 500 mm above the man-way height and/or 350 mm above any raised float valve housing.

Optional Extras:

• Screened lid vent
• Screened overflow ¾'' (22 mm) up to 4"
• Screened warning pipe ¾'' (22 mm)
• BSP female tank connector up to 4"
• Lid mounted level switch to suit high or low warning Temperature sensor

Important: All water storage tanks supplying water to a potable system require pre-commission cleaning and sterilisation.

An Internally Flanged Base Tank (IFB) is the most cost-effective sectional tank format and is suitable for: Positioning onto a flat, solid, level and continuous foundation.

Applications where there is sufficient working room all around the tank.

Comprising: Internally flanged base, externally flanged sides, internally flanged roof.

Insulated to the sides and cover only.

SPECIFICATION:

• Insulation: 25 mm Fully Encapsulated to Sides
• Panel Size: 1000 x 1000 mm
• Side Panels: Externally Flanged
• Base Panels: Internally Flanged
• Heavy Duty Lid: Internally Flanged
• Internal fixings: Stainless Steel
• External fixings: Galvanised
• Man way: Included, providing 800 x 800 mm access opening
• Foundation Levelling Steels: Included (To suit flat structural foundation pad)

PW.2x2x1.IFB Dimensions

Airgap	AG
Single or Twin Compartment (divided)	Single
External Dimensions	2150 x 2150 x 1250 mm high
Assembly Area Required	3150 x 3150 x 1750 mm high
