3P COMPACT FILTER

3P COMPACT FILTER
Quality filtration unit protecting tank contents and downstream equipment from sediment and contamination.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Kingspan Energy
What makes this FILTER the right choice?
3P COMPACT FILTER
This rainwater harvesting filter is 3P Techniks smallest rainwater filter for installation within rainwater tanks.
The 3P Compact Filter is ideal where there is little room and no height difference between inlet and outlet on the water tank.
This rainwater filter is low maintenance, depending on level of solids in the incoming rainwater. The cleaned rainwater can be used in washing machines, toilet flushing and garden watering in homes, commerce, public buildings and in industry.
- Connection capacity for roof areas up to 150m2
- All connections DN 100 (110mm OD)
- No height difference between inlet and outlet
- Mesh size of filter cartridge: 0.7 x 1.7mm

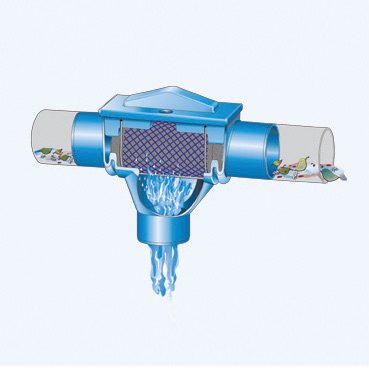

How It Works:
- Rainwater flows onto the filter cartridge
- The filter cartridge cleans the rainwater. The cleaned rainwater flows through the calmed flow inlet into the rainwater tank
- Because of the smooth surface structure of the filter the dirt is quickly rinsed away into the sewer
Technical data
Full specifications
| Physical | |
| Empty weight | 1 kg |
| Reference | |
| SKU | 1000100 |
| EDEL code | DELIVERY |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
