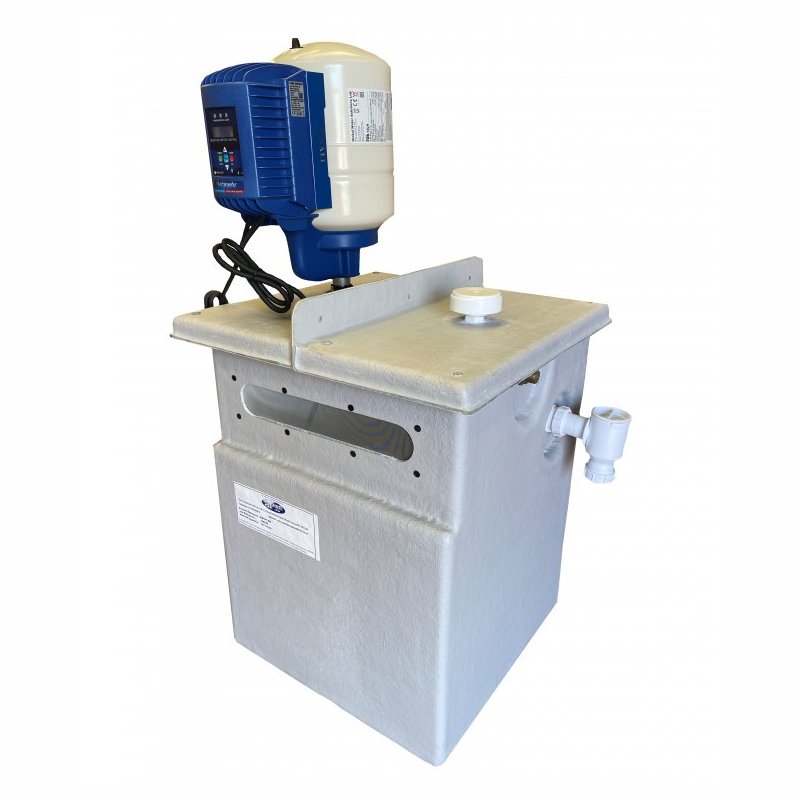

375L SINGLE PUMP VARIABLE CAT 5 BOOSTER SET

375L SINGLE PUMP VARIABLE CAT 5 BOOSTER SET

The CAT 5 booster set also know as 'Backflow prevention booster set' incorporates a 375 Litre polypropylene break tank complete with a raised ball valve chamber with an AB air gap to WRAS approved regulations. With its simple 'plug and play' installation, it is so fast and easy to install. Fully CAT5 compliant with a WRAS approved GRP storage tank, this tank is the ideal solution for any places where space is a premium, as it can fit on a footprint, as small as 670 mm x 610 mm.

APPLICATIONS INCLUDE:

• Laboratories
• Veterinary Surgeries
• Bin Washdown
• Mortuaries
• Abattoirs
• Bib Tap

TECHNICAL SPECIFICATION

• Whisper quiet pump - less than 50bd.
• Pre-assembled for easy installation
• Wet/pressure tested prior to despatch
• Compact design with small footprint
• WRAS approved GRP storage tank
• WRAS approved 3/4" ball valve fitted as standard
• Suitable for single phase 230 volt supply only
• A standard opening offers unobstructed access to the system
• Low water level protection
• Maximum allowable static head is 12 meters

OPERATION

The CAT 5 Booster set is designed to monitor the system pressure. As the demand increases the pressure will fall and the pump will start to run until the demand has stopped and the pressure increases. The variable speed option has the advantages of maintaining constant pressure, which reduces running costs and saves energy.

PUMP SPECIFICATION

Stainless steel WRAS approved multistage pump complete with variable speed controlled, 230 volt single phase supply.

CONTROLLERS

This unit is an energy saving device and has the capabilities to run with a BMS connection.
