32,000L CARAT XXL WATER TANK
32,000L Carat XXL WATER TANK
32,000L tank specially developed for wastewater, rainwater, stormwater, firefighting water tank, process water tank and water storage.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Graf Ireland Environmental Ltd
What makes this TANK the right choice?

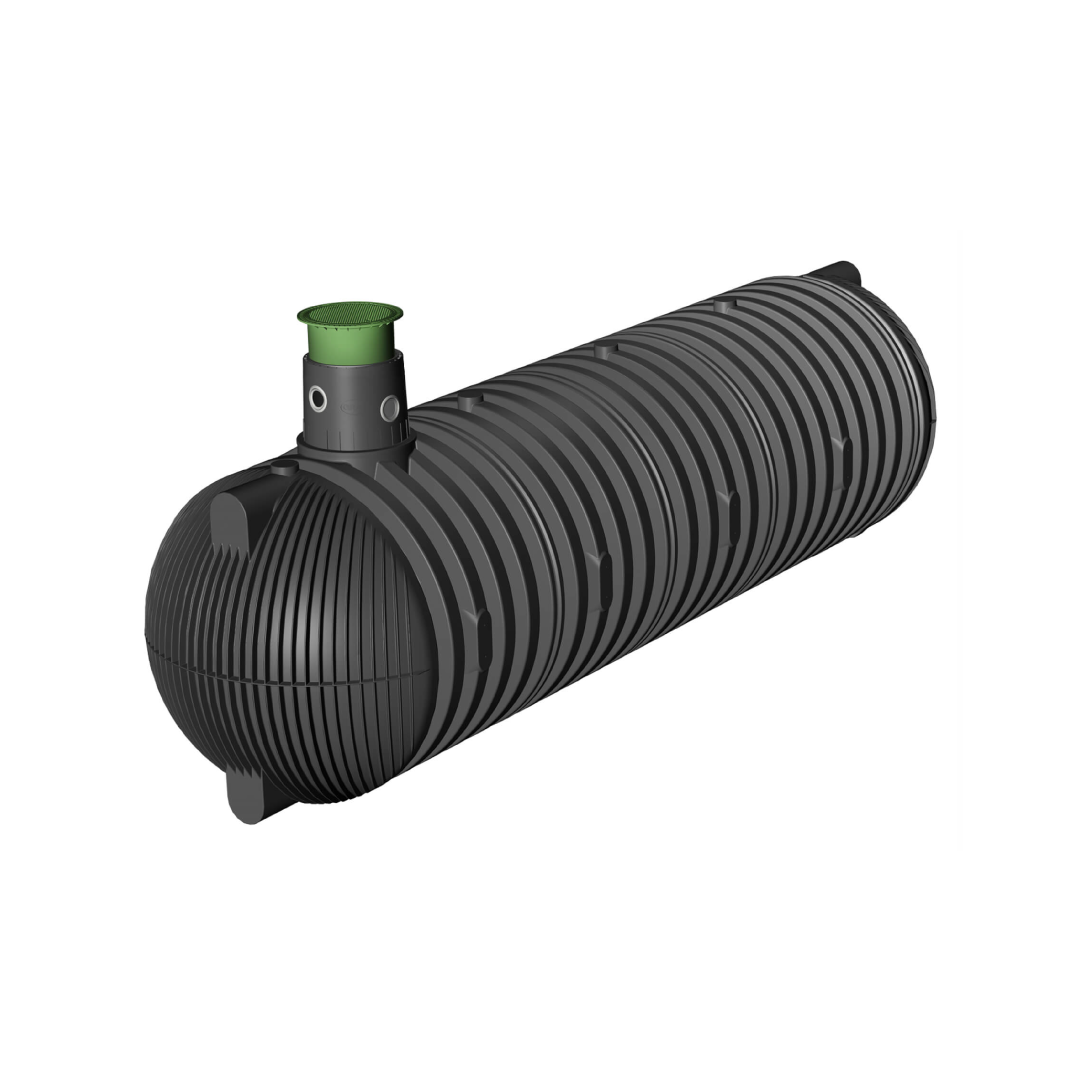

32,000L Carat XXL WATER TANK
The Carat XXL underground tank is designed specifically for a variety of applications, including wastewater management, rainwater collection, stormwater retention, firefighting water storage, process water containment, and general water storage. It comes in a range of capacities from 16,000 litres to 52,000 litres.
- Flexibility and stability are perfectly combined
- Suitable for vehicle loading / lorry loading (with suitable cover)
- Dome opening with stainless steel profile for precision fit and secure mounting
- No need for heavy load transport
- 15-year warranty
- Lorry bearing up to 40t
- Groundwater-stable
- Lighter than tank made of concrete or steel
- Numerous DN 100/150/200 connection surfaces
Specifications:
- Length: 8440mm
- Width: 2500mm
- Height: 3160mm
- Weight: 1000kg
Technical data
Full specifications
| Physical | |
| Capacity | 32000 L |
| L × W × H | 844 × 250 × 316 cm |
| L × W × H (mm) | 8440 × 2500 × 3160 |
| Empty weight | 1375 kg |
| Construction | |
| Material | Polypropylene (PP) |
| Reference | |
| SKU | 380003 |
| EDEL code | EDELP00021783 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
Technical documentation
Downloads & data sheets
