3,750L CARAT WATER TANK
3,750L Carat WATER TANK
3,750L tank reducing dependency on mains water. Ideal for toilet flushing, garden irrigation and wash-down.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Graf Ireland Environmental Ltd
What makes this TANK the right choice?
3,750L Carat WATER TANK

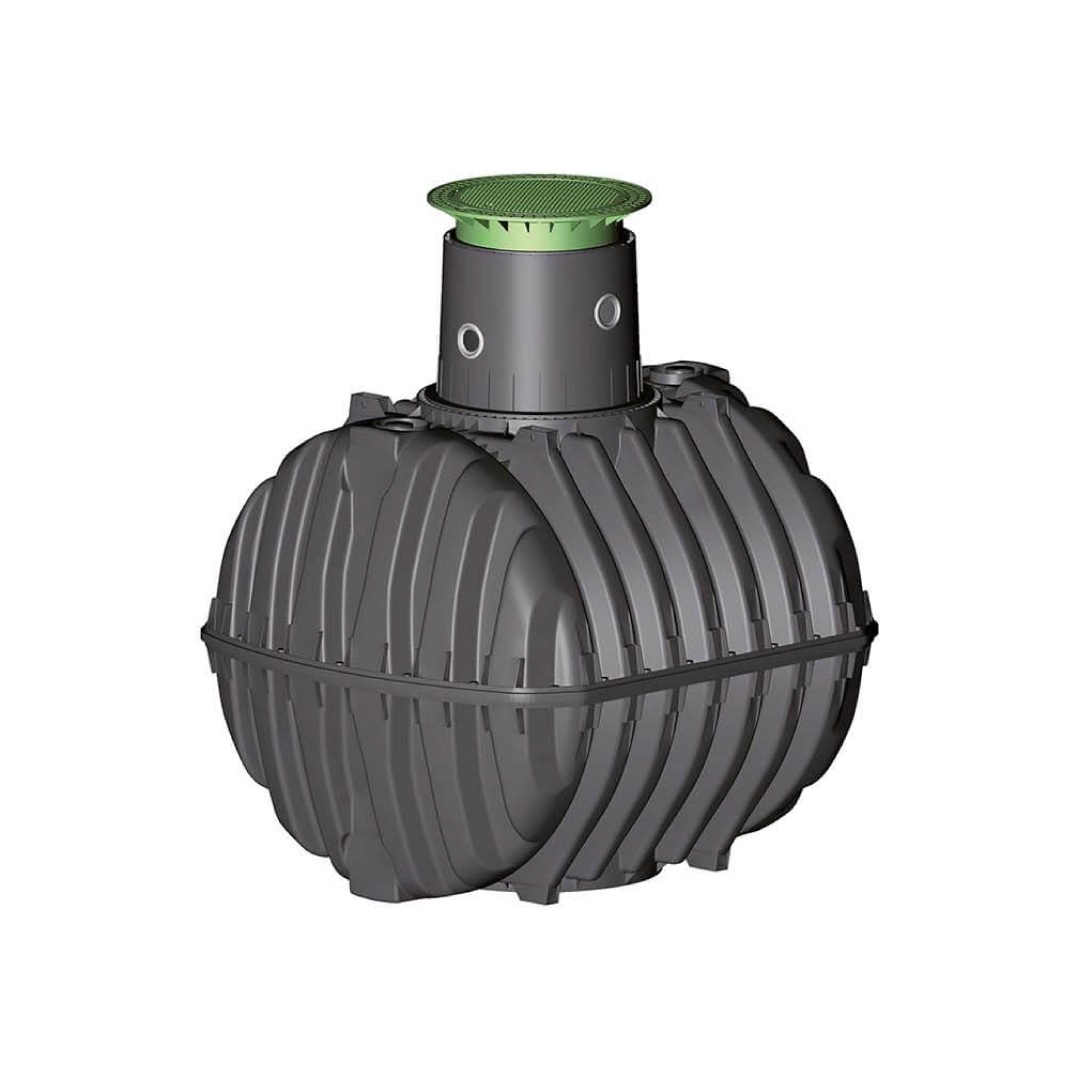

The Graf Carat S underground storage tank is versatile and suitable for numerous applications, such as storing non-potable water, wastewater, rainwater, and stormwater.
Carat tanks are available from 2,700L up to 52,000L.
- Optimal tank geometry and statics due to CAD product development – equals highest stability
- Unique fitting accuracy of the components
- Consistent quality due to constant production monitoring
- Can be expanded as required.
Specifications:
- Length: 2315mm
- Width: 1790 mm
- Height: 1880 mm
- Weight: 150kg
Technical data
Full specifications
| Physical | |
| Capacity | 3750 L |
| L × W × H | 232 × 179 × 188 cm |
| L × W × H (mm) | 2315 × 1790 × 1880 |
| Empty weight | 150 kg |
| Construction | |
| Material | Polypropylene (PP) |
| Reference | |
| SKU | 372025 |
| EDEL code | EDELP00021783 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
