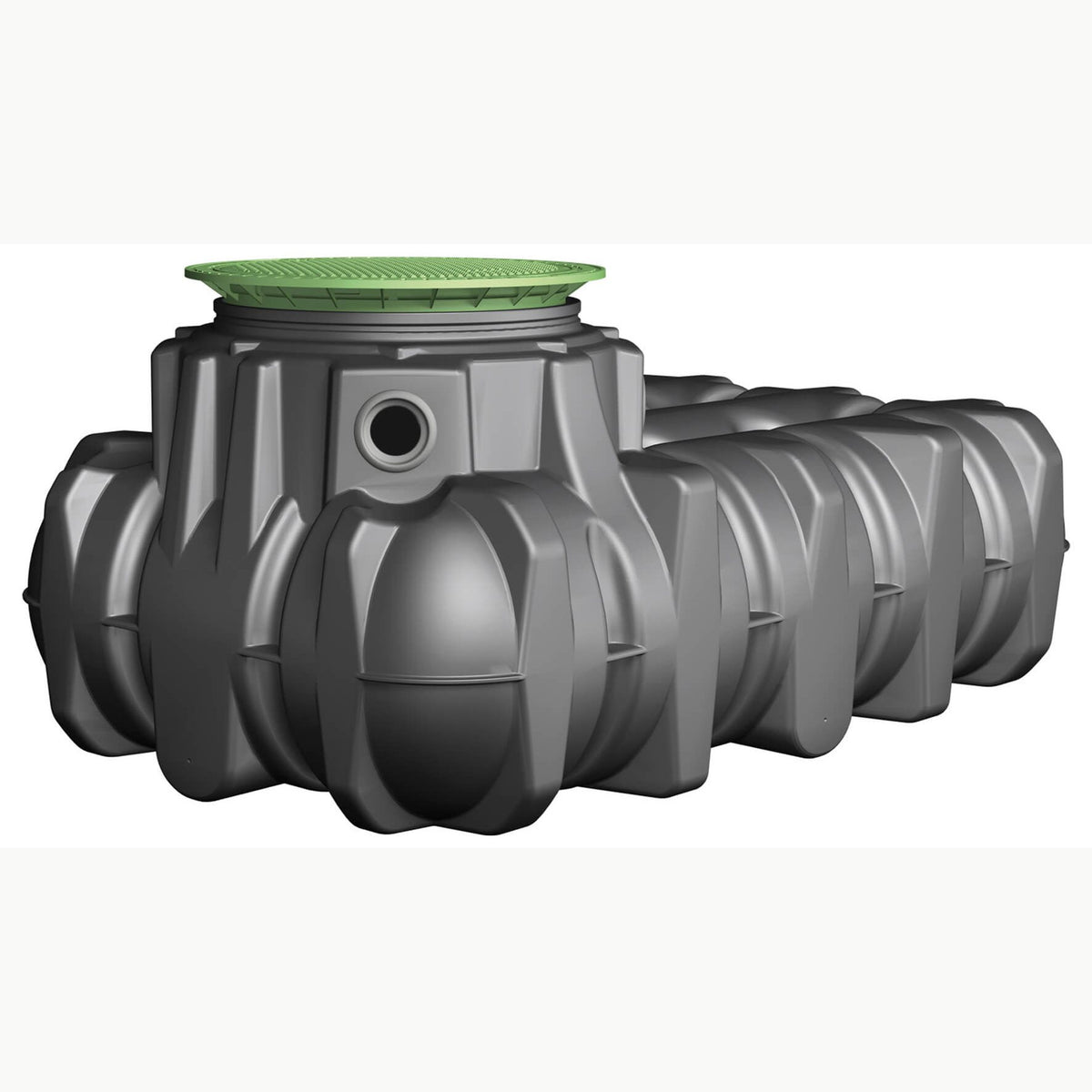

3,000L PLATIN FLAT RAINWATER TANK
3,000L PLATIN FLAT RAINWATER TANK
3000L rainwater harvesting tank reducing dependency on mains water. Ideal for toilet flushing, garden irrigation and wash-down.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Graf Ireland Environmental Ltd
What makes this TANK the right choice?
3,000L PLATIN FLAT RAINWATER TANK
The Platin flat rainwater tank is specially developed for rainwater harvesting. The rainwater tank is designed for it's stability and comes with a 15 year warranty. This underground rainwater tank is easy to install. This Platin XL tank comes with a pedestrian lid and maxi dome.
- Low installation depth means a short installation time and low installation costs
- Ground water stable up to the tank shoulder thanks to extremely stable design
- Easy transport due to low weight
- The rotating tank dome to easily align the connecting lines
- Available with a second tank dome as an option
- Suitable for HGV loading up to a vehicle weight of 30 t (66138 lbs)
- Flexible connection up to DN 300 (12")
- Connection openings with pre-fitted DN 150 (6") lip seals
- Tank height of just 125 cm (4' 1")
- High-quality, integrated DN 150 (6") filter technology
- Dome opening with stainless steel profile for precision fit and secure mounting
- Connection fitting of up to DN 200 (8"), on tank dome of up to DN 300
Installation of 1500mm max earth covering (without groundwater, vehicle loading.
Technical data
Full specifications
| Physical | |
| Capacity | 3000 L |
| L × W × H | 245 × 210 × 105 cm |
| L × W × H (mm) | 2450 × 2100 × 1050 |
| Empty weight | 180 kg |
| Construction | |
| Material | MDPE |
| Reference | |
| SKU | 390001 |
| EDEL code | EDELP00021783 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
