250L ABOVE GROUND MINI PUMPING STATION

250L ABOVE GROUND MINI PUMPING STATION
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Direct Pumps & Tanks
What makes this STATION the right choice?

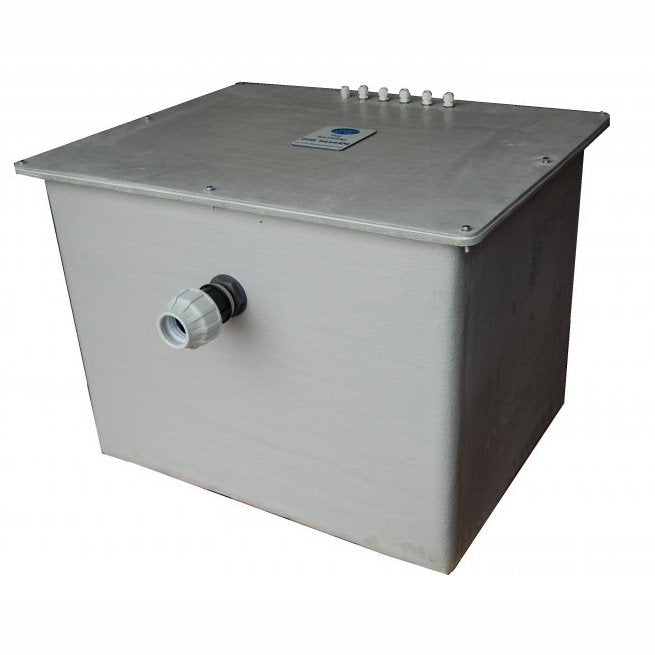

250L ABOVE GROUND MINI PUMPING STATION
The complete kit for use in areas where gravity flow is not available. This system is used for the transfer of sewage or waste water, all specially designed for easy installation.
A small, compact sewage pumping station, suitable for cellars, extensions, garden rooms and small applications, consists of -
- Heavy duty Stainless Steel Submersible Sewage Pumps - available in 6m, 10m lift or Macerator.
- 50mm solid handling or macerator for peace of mind
- Complies to BS EN 12050-1:2001 / BS EN 752-6:1998 Standards
The 250 Litre Above ground GRP (glass reinforced plastic) Sewage pumping station can pump up to 100m across to mains.
Sewage Pumping Station includes:
- 50mm Solids sewage pump - 6m, 10m lift or macerator
- 1125mm x 625mm x 509mm high grade GRP moulded basin (250Ltr)
- Soft close Non Return Valve
- Internal 2" PVC (class C) discharge pipe work kit
- Seal for incoming and outgoing pipework (4" & 2")
- 12 months warranty
| Model Ref | 6VX | 10VX | MC |
|---|---|---|---|
| Impeller Type | Vortex | Vortex | Macerator |
| Power Supply | 230
~1ph~50hz |
230
~1ph~50hz |
230
~1ph~50hz |
| Rated Power | 0.37kW | 0.75kW | 1.2kW |
| Rated Current | 1.9A | 4.0A | 9.2A |
| Max Head | 6m | 10m | 16m |
| Max Flow Rate | 5.5l/s | 7.9l/s | 1.8l/s |
| Cable Length | 10m | 10m | 10m |
| Free Passage | 50mm | 50mm | Macerator |
Technical data
Full specifications
| Physical | |
| Capacity | 250 L |
| L × W × H | 113 × 63 × 51 cm |
| L × W × H (mm) | 1125 × 625 × 509 |
| Construction | |
| Material | GRP |
| Ordering & delivery | |
| Customer off-loading | Required — see delivery terms |
| Reference | |
| SKU | AG250/S/10VX |
| EDEL code | EDELP00002097 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
