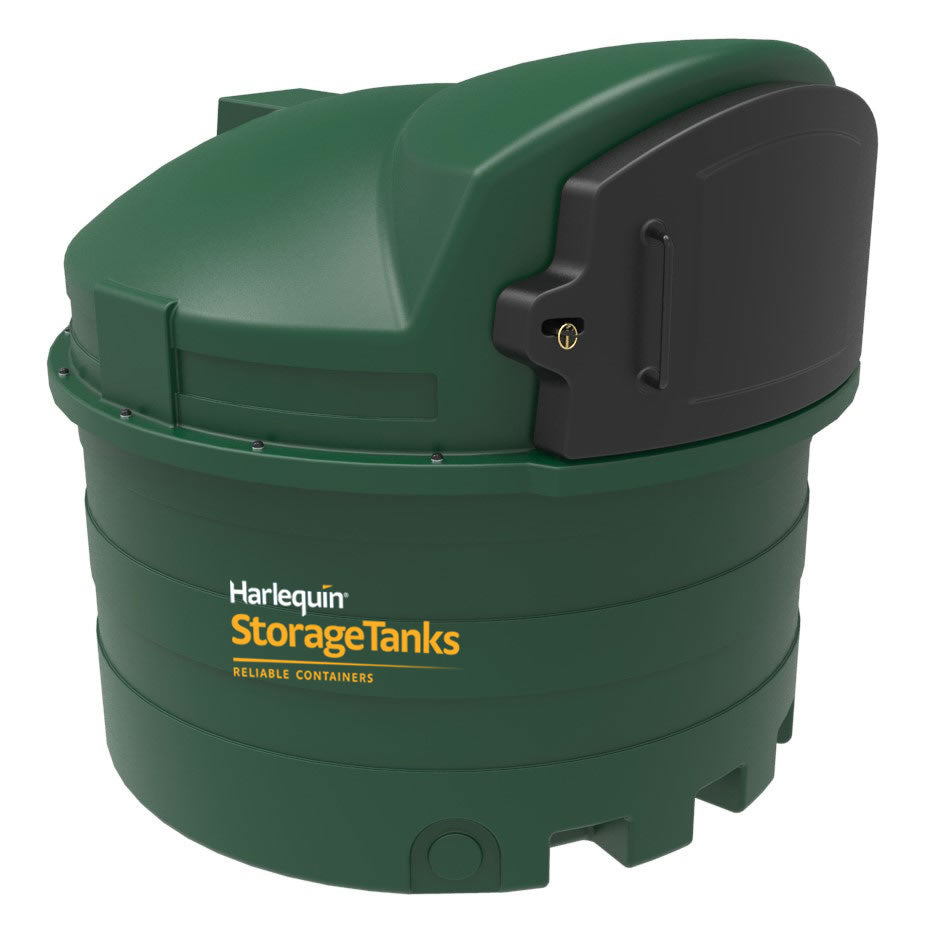

2500FP FUEL POINT
2500FP FUEL POINT
Also suitable for the storage of B5 Bio-Diesel.
Price on Application
This product requires a tailored quote. Complete the enquiry form and our team will be in touch.
Enquire About This Product
Submit the form below and our team will be in touch with pricing and availability.
Harlequin Manufacturing Ltd (Euro)
What makes this POINT the right choice?
2500 FP FUEL POINT
These diesel Fuel bunded storage & dispensing unit are ideal for smaller, commercial, industrial and agricultural installations where the added value technologies are not required.
Also suitable for the storage of B5 Bio-Diesel.
Bunded Plastic Diesel Storage and Dispensing Tank, rotationally moulded from Medium Density Polyethylene and supplied with:
- 240v Electric Pump with 56 lpm Nominal Flow Rate
- 2" BSP Lockable Fill Point with Screw Cap and Chain
- Fuel Tank Contents Dipstick
- 4" Lockable Inspection Point with Plastic Screw Cap
- LRC Failsafe Overfill Prevention Capability
- Tank Vent
- Lockable Access
- 4 metre Diesel resistant Delivery Hose with Three Stage Automatic Shut Off Nozzle
- Optional:10 Micron Fuel Filter, Mechanical Flow Meter or Electronic Level Gauge
*DELIVERY TERMS:
Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities for kerbside delivery subject to availability.
It is the responsibility of the customer to inform us, if off-loading equipment is required.
Technical data
Full specifications
| Physical | |
| Capacity | 2442 L |
| L × W × H | 206 × 202 × 188 cm |
| L × W × H (mm) | 2060 × 2020 × 1880 |
| Empty weight | 200 kg |
| Construction | |
| Material | MDPE |
| Reference | |
| SKU | 2500FP |
| EDEL code | EDELP00002251 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
