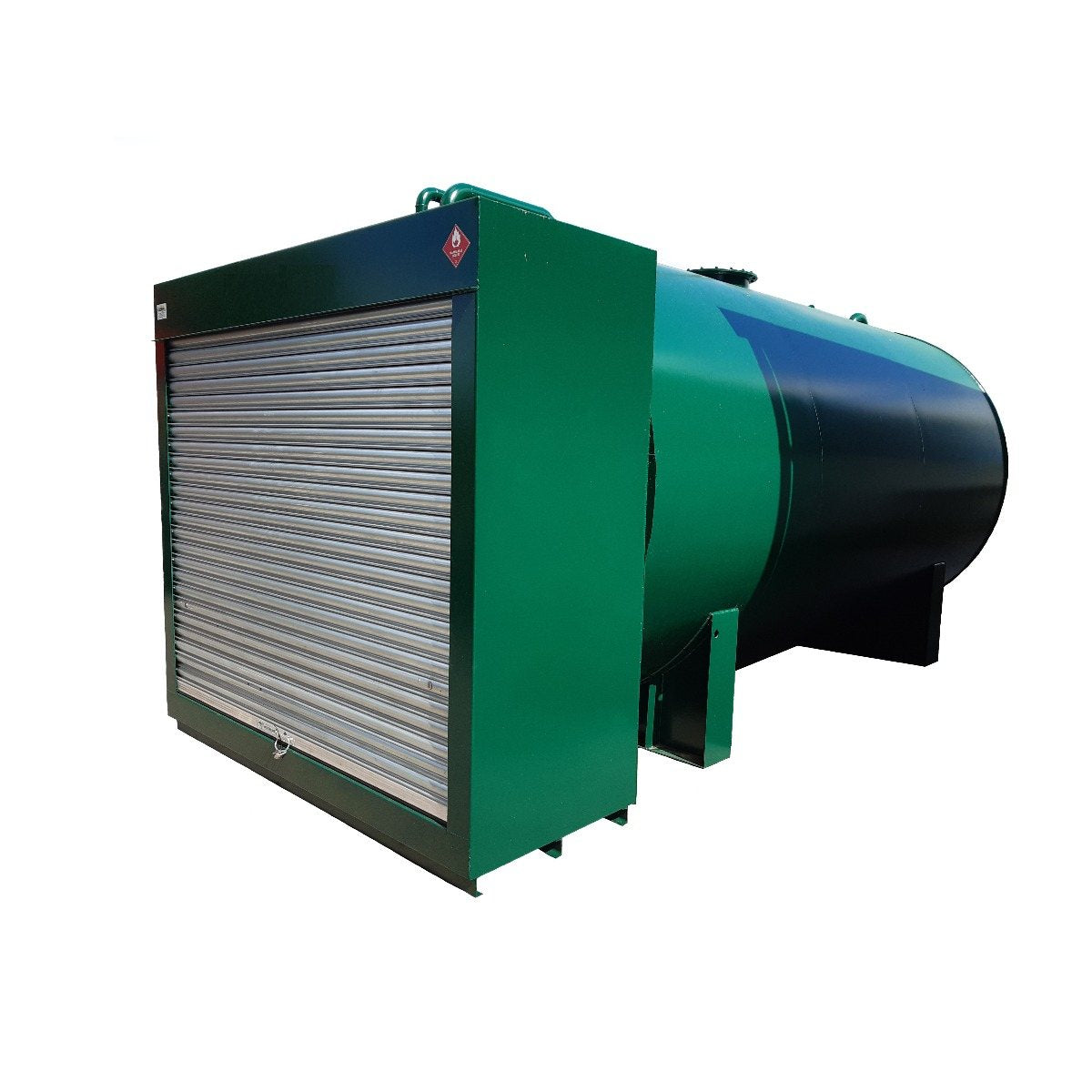

20000L CYLINDRICAL BUNDED STEEL OIL TANK WITH CABINET
Quality pipe fitting for reliable connections in tank and water supply systems. Chemically resistant construction for long service life.
Price on Application
This product requires a tailored quote. Complete the enquiry form and our team will be in touch.
Enquire About This Product
Submit the form below and our team will be in touch with pricing and availability.
McCabe Tanks Ltd
What makes this CABINET the right choice?
20000L CYLINDRICAL BUNDED STEEL OIL TANK WITH CABINET
20,000L Cylindrical Bunded Over Ground Steel Oil Tanks with Cabinet are manufactured from 4mm plate steel. These Bunded Steel Diesel Tanks offer a safe and secure solution to diesel storage and distribution in any environment. These bunded steel tanks are manufactured to B.S 799 Part 5 and pressure tested to 0.7 bar. The primary oil tank is contained within its own bunded area, with a capacity greater than 110%.
Tank comes with:
- Cabinet and roller shutter door
- Bolted manhole
- Lifting lugs for onsite installation
- 2 no. cradles
- 1 no. 50mm outlet
- 1 no. 50mm vent
- 4 no. 50mm spare sockets
- Available in RAL Colours 6005 and 7016
Optional extras can be supplied on request such as anti-overfill pipes, fill boxes and pipework. External pipe work i.e. fill pipes will be terminated at approx. waist height and the end of the pipe threaded.
Double and triple compartments can also be specified.
Contents gauges, monitoring systems, fuel management systems, flow meters, pumps and filters can also be supplied on request.
More tank sizes are available.
Delivery is usually 6-8 weeks from order.
Delivery is not included in the quoted price - please enquire for delivery options.
Technical data
Full specifications
| Physical | |
| Capacity | 20000 L |
| Reference | |
| SKU | MCCABES20000CBWITHCABINET |
| EDEL code | EDELP00012893 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
