20' BIG BLUE FILTER HOUSING
20' BIG BLUE FILTER HOUSING
Quality filtration unit protecting tank contents and downstream equipment from sediment and contamination.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
PWG Ireland Ltd
What makes this HOUSING the right choice?

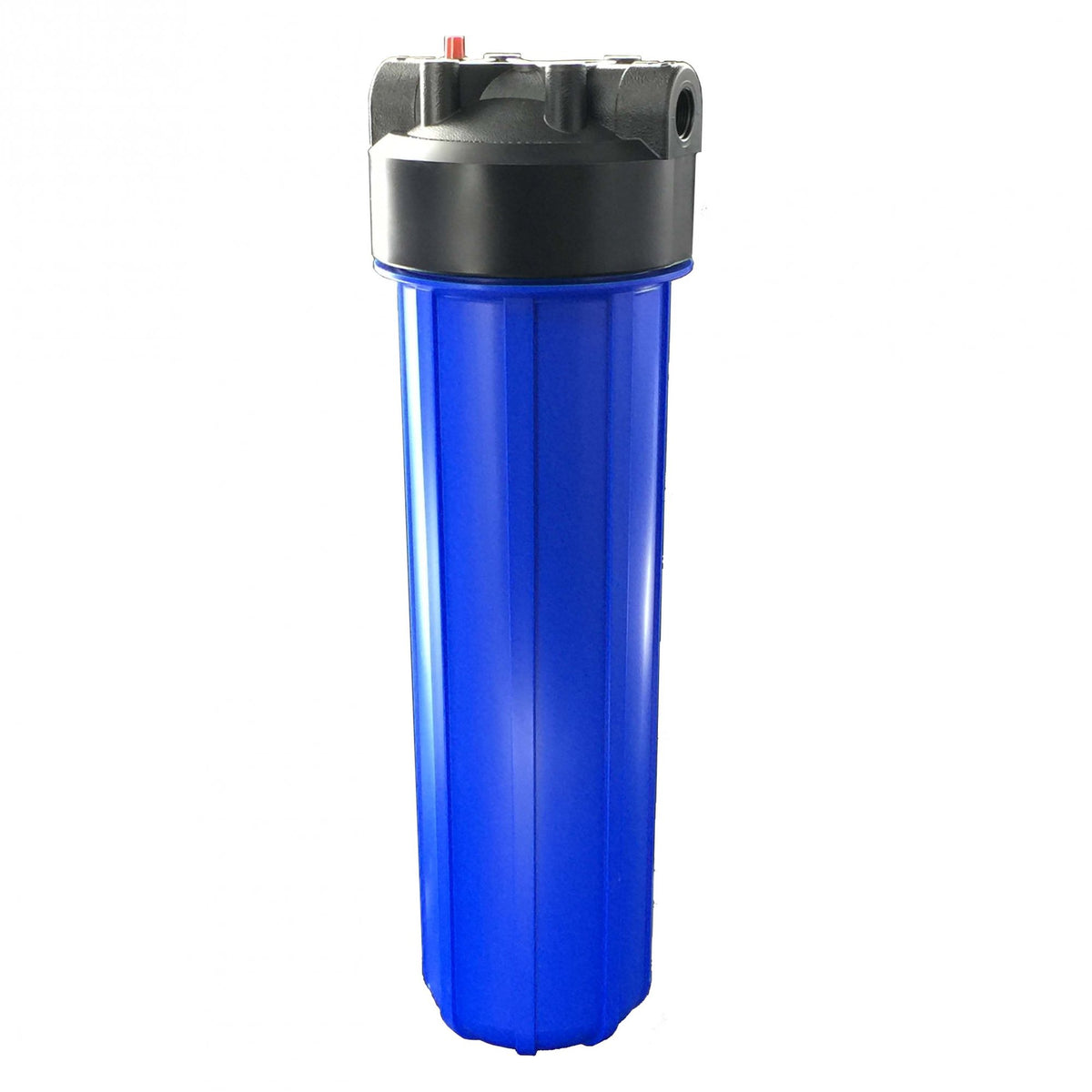

20" BIG BLUE FILTER HOUSING
These filter housings are designed to fit to "BIG" filter cartridges with outer diameter from 4" to 4.5", inner diameter 1.1" and height at 20".
Applications:
- Filtration and treatment of water with neutral pH and drinking water.
- Domestic use: filtration and treatment of drinking water, protection of taps, boilers, washing machines, and other installations.
- Technical use: pre-filtration, micro-filtration; protection of pumps, heating systems, softeners, demineralising and chlorine-removing appliances, reverse osmosis units.
Specifications:-
- Max working pressure - 7 BAR
- Max working temperature - 45°C
- Min working temperature - 4°C
- Non-toxic materials, suitable for drinking water
- 1" BSP Threads
- Comes complete with wall mounting bracket and opening spanner
- Dims: 190mm wide x185mm length x 617mm high
Technical data
Full specifications
| Physical | |
| L × W × H | 19 × 19 × 62 cm |
| L × W × H (mm) | 185 × 190 × 617 |
| Reference | |
| SKU | 1611030021 |
| EDEL code | EDELP00317407 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
