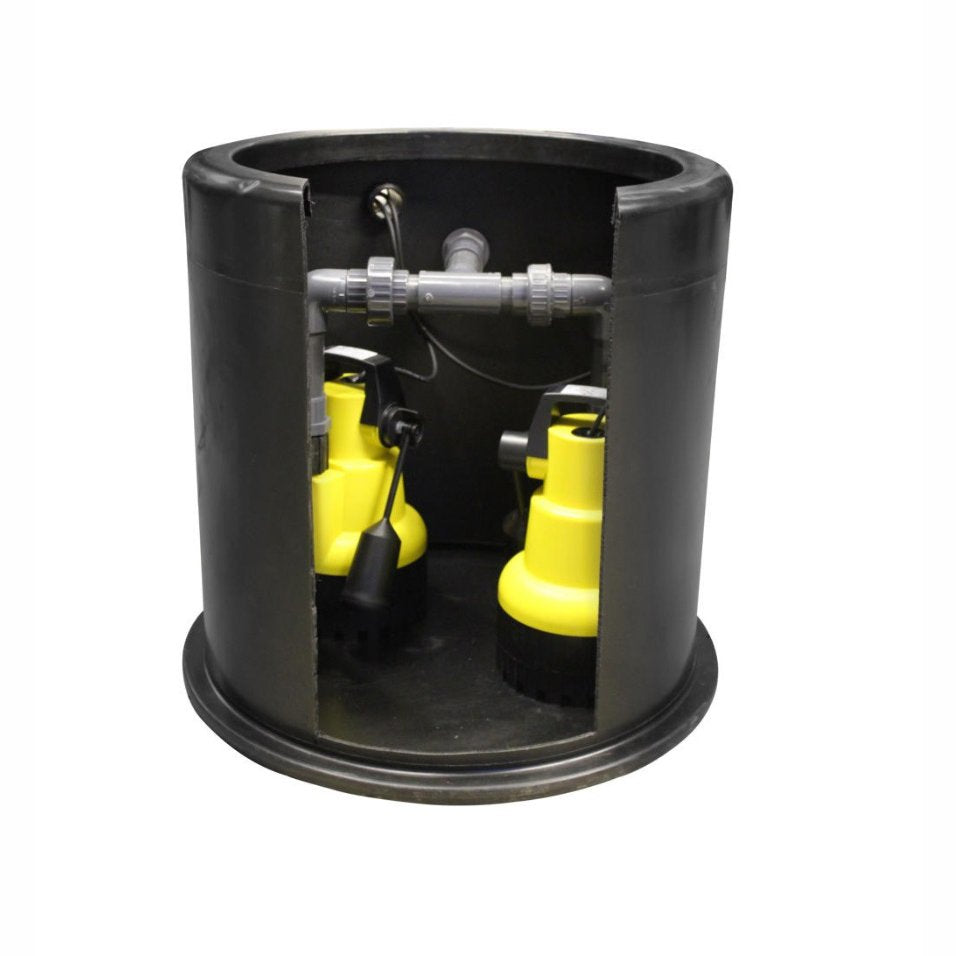

190L AQUA TANK PRO

190L AQUA TANK PRO

Suitable for Removing Grey Water From: Final Effluent from Sewage Treatment Plants, Drainage of Cellars & Basements, Sinks, Showers, Kitchens & Dishwashers. A packaged pump station is used when gravity drainage on site cannot be achieved. The Aqua tank Pro is suited for clean, dirty or slightly polluted water. This unit has been designed to pump water from a septic tank or treatment plant. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards. The system comes in four different depths, 635, 1000, 1500 and 2000mm. The units are available from stock. All you need is supplied so you just need to supply the pipework to and from the station, plus any fittings. A high water alarm is available if required.

The Aqua Pro Pumping Station comes with a submersible pump with 10mm solid handling for peace of mind.

The AquaTank and AquaTank Pro can collect grey water from showers and wash-hand basins however, they are not suitable for foul/sewage waste from toilets. If this is required, please see our Micro Series pump station range.

Pump:

• Polypropylene Plastic
• 10mm (1 ¼'') solids handling capacity
• Coolant filled motor
• Mechanical seal
• 10 Meter cable
• Max 6 Meter lift
• Max flow 5 L/sec
• Float switch as standard

Tank:

• Polyethylene tank
• 190L capacity
• Screw down lid (Pedestrian rated)
• 1 x 110mm/160mm inlet seal to allow inlet to be drilled on site
• 40mm cable duct
• 1 ¼'' internal pipe work
• 1 ¼'' non-return valve
• 1 ¼'' quick release coupling
• 1 ¼'' cable duct

Special audible/visual high level alarm control box available
