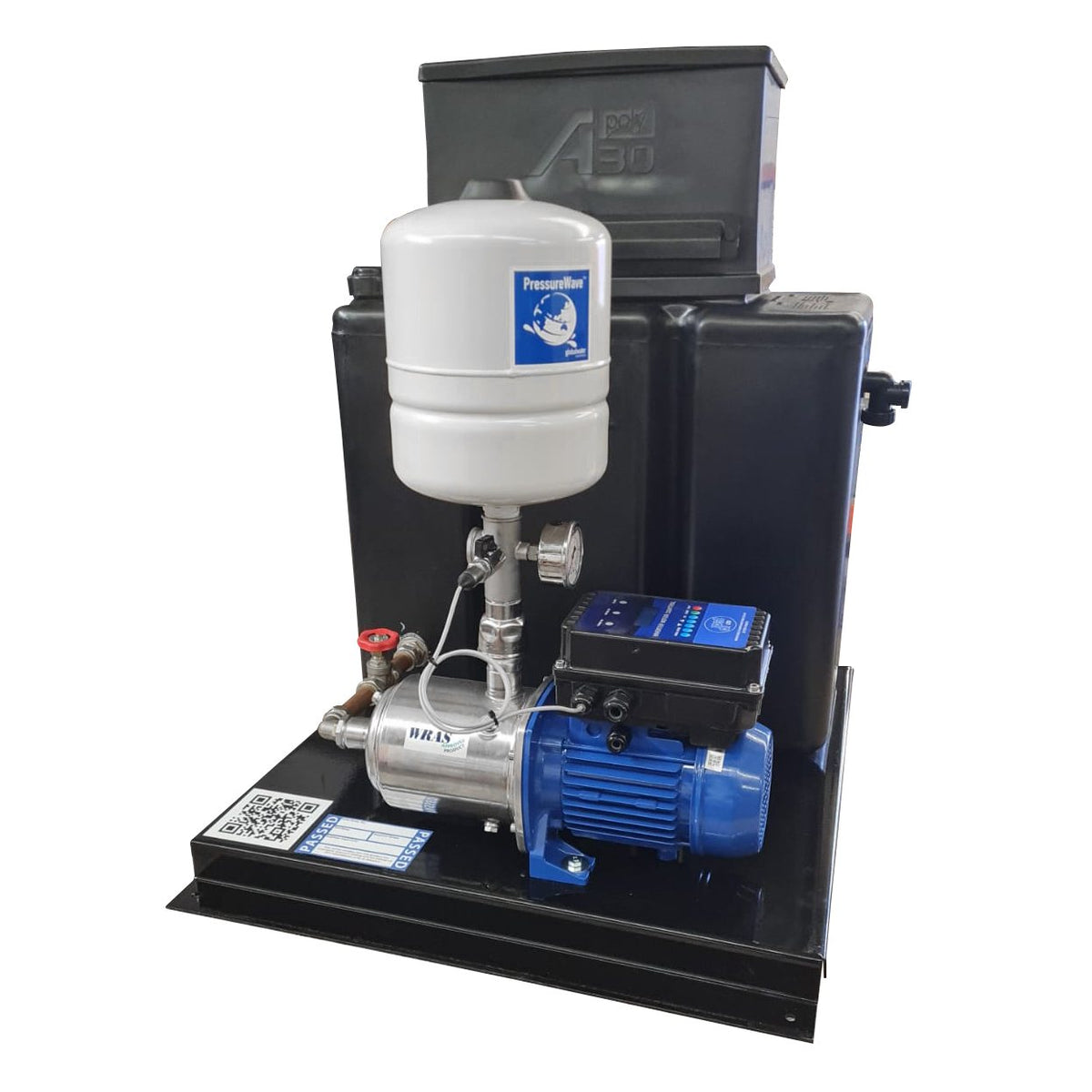

160L/MIN @ 5.0BAR 67L CAT5 SINGLE VARIABLE SPEED PUMP BOOSTER SET & TANK

160L/MIN @ 5.0 BAR 67L CAT5 SINGLE VARIABLE SPEED PUMP BOOSTER SET & TANK

The CAT 5 booster set also know as 'Backflow prevention booster set' incorporates a 67 Litre polypropylene break tank complete with a raised ball valve chamber with an AB air gap to WRAS approved regulations. This free standing booster set, is ideal where space is limited, as it has a small footprint of just 650mm x 650mm. The system comes complete with an integrated pressure controller which is mounted directly to the top of the pump.

What is a CAT 5 break tank and booster set?

Cat 5 Break Tank and Pump Sets feature an AB air gap between the inlet and outlet to ensure that contaminated water does not flow back into the mains supply. Thus conforming to all relevant water regulations for category 5.

Applications include:

• Wash down and bin store
• Dental rinsing equipment
• Single hosepipe application
• Laboratory water supplies
• Vehicle and plant cleaning
• Any other CAT5 application where backflow protection is required.

Features:

• 67 litre capacity
• WRAS approved pump
• MDPE tank
• CAT 5 AB Air gap
• Low level protection
• Electronic pressure controller
• Common fault volt fault-free contact

Specification:

• Flow rage - 0.14 - 1.25 litres/second
• Discharge head range - 10-50 meters
• Maximum system pressure - 10 bar
• Capacity - 67 litres
• Power supply - 230/1/50
• Inlet connection - 1/2" BSP
• Outlet connection - 1" BSP
• Tank construction - MDPE

Operation

The CAT 5 Booster set is designed to monitor the system pressure. As the demand increases the pressure will fall and the pump will start to run until the demand has stopped and the pressure increases. The variable speed option has the advantages of maintaining constant pressure which reduces running costs and saves energy.
