1400L DOUBLE WALLED UNDERGROUND OIL TANK
With a standard depth of 500mm, they offer optimum strength and performance for underground installation.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Harlequin Manufacturing Ltd (Euro)
What makes this TANK the right choice?

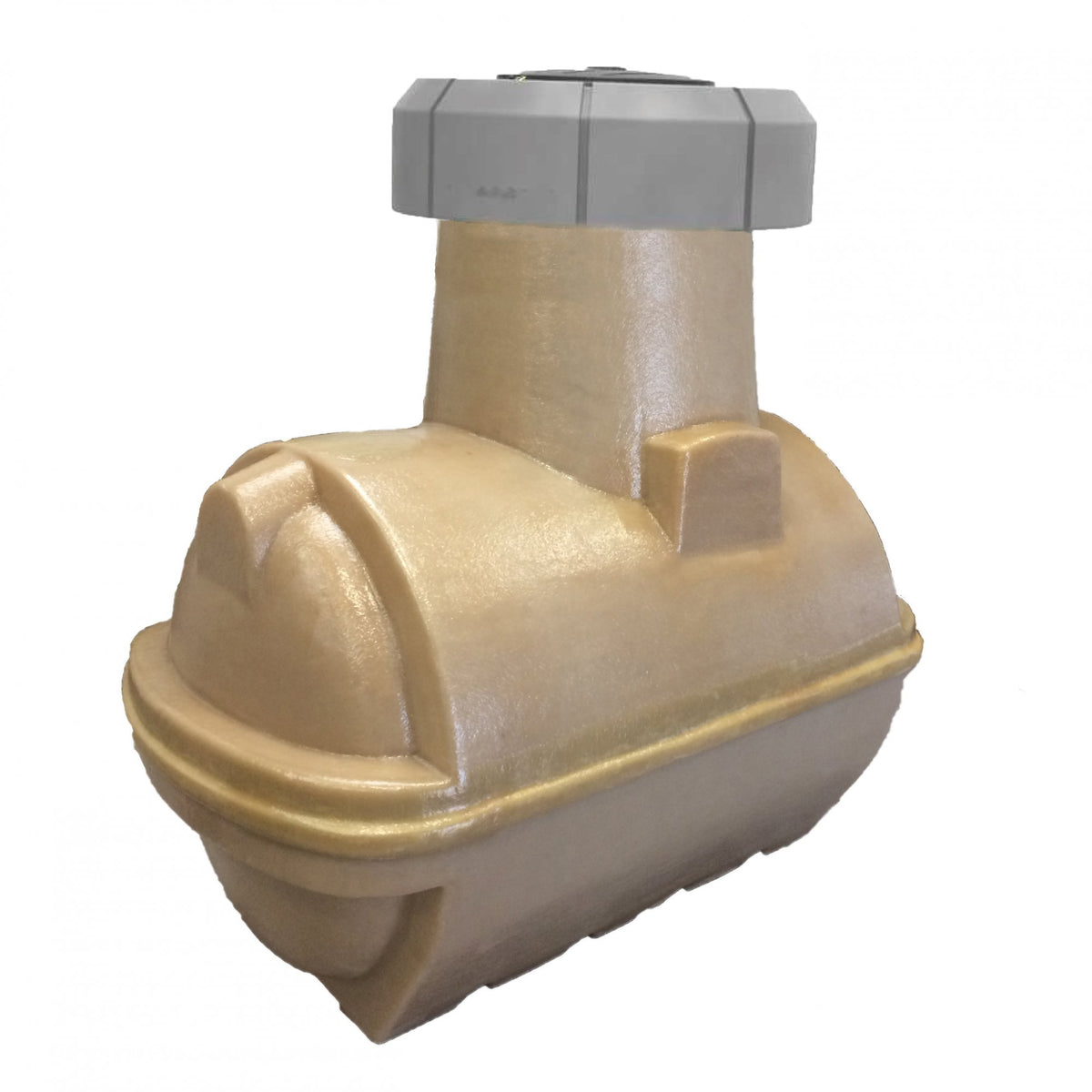

1400L DOUBLE WALLED UNDERGROUND OIL TANK
These Double Walled underground fuel oil storage tanks are a popular option for small gardens and sensitive landscapes. With a standard depth of 500mm, they offer optimum strength and performance for underground installation. A basin at the top of the tank neck contains a 2" fill point, offtake, contents gauge and overfill prevention valve, all of which are easily accessed via the lockable mushroom lid. A Tigerloop is also supplied with all underground fuel tanks. The Double Walled design is complete with an interstitial leak detection monitor and fully complies with PPG27 and BS5410.
Supplied with:
- 2" fill point
- Atkinson Top Offtake
- Contents gauge
- Overfill Prevention Valve
- Lockable Mushroom Lid
- Tigerloop
*DELIVERY TERMS:
Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities for kerbside delivery subject to availability.
It is the responsibility of the customer to inform us, if off-loading equipment is required.
Technical data
Full specifications
| Physical | |
| Capacity | 1465 L |
| L × W × H | 211 × 126 × 210 cm |
| L × W × H (mm) | 2105 × 1255 × 2100 |
| Empty weight | 220 kg |
| Reference | |
| SKU | UGD1400 |
| EDEL code | EDELP00002251 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
