13,000L CARAT XL WATER TANK
13,000L Carat XL WATER TANK
10,000L tank reducing dependency on mains water. Ideal for toilet flushing, garden irrigation and wash-down.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Graf Ireland Environmental Ltd
What makes this TANK the right choice?

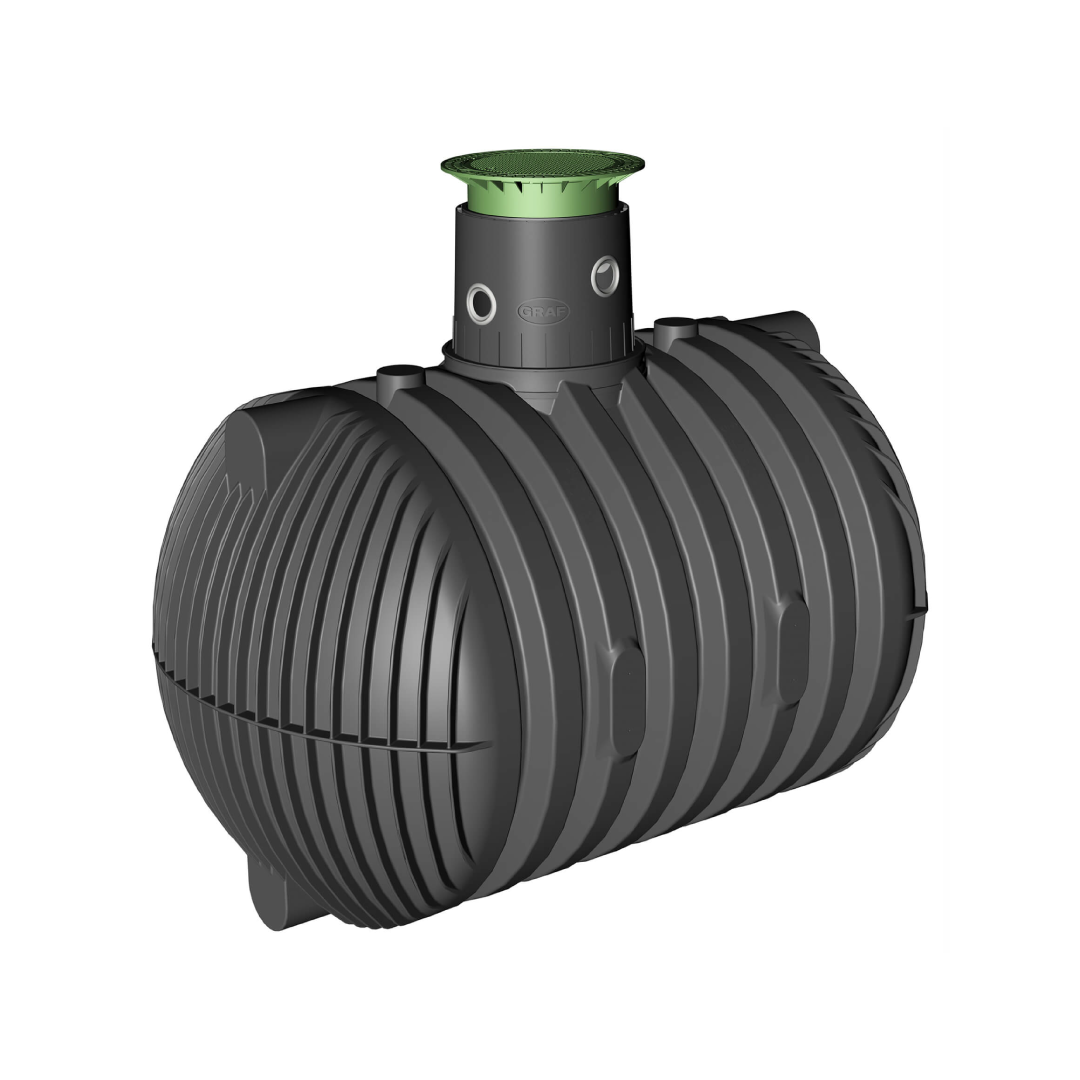

13,000L Carat XL WATER TANK
The Carat XL underground tank is expertly designed for various applications, including rainwater harvesting, serving as a retention cistern, firefighting water storage, process water containment, and functioning as a septic tank. It is capable of supporting vehicle or lorry loads (when paired with a telescopic dome shaft featuring a cast iron lid).
- Optimal tank geometry and statics due to CAD product development – equals highest stability
- Unique fitting accuracy of the components
- Dome opening with stainless steel profile for precision fit and secure mounting
- Consistent quality due to constant production monitoring
- Vehicle or lorry-bearing (combined with Telescopic dome shaft with cast iron lid or TRUCK)
- Groundwater stable up to the middle of the tank thanks to extremely stable construction
- Can be expanded as required
Specifications:
- Length: 4000mm
- Width: 2420mm
- Height: 3075mm
- Weight: 615kg
Technical data
Full specifications
| Physical | |
| Capacity | 13000 L |
| L × W × H | 400 × 242 × 308 cm |
| L × W × H (mm) | 4000 × 2420 × 3075 |
| Empty weight | 615 kg |
| Construction | |
| Material | Polypropylene (PP) |
| Reference | |
| SKU | 370023 |
| EDEL code | EDELP00021783 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
