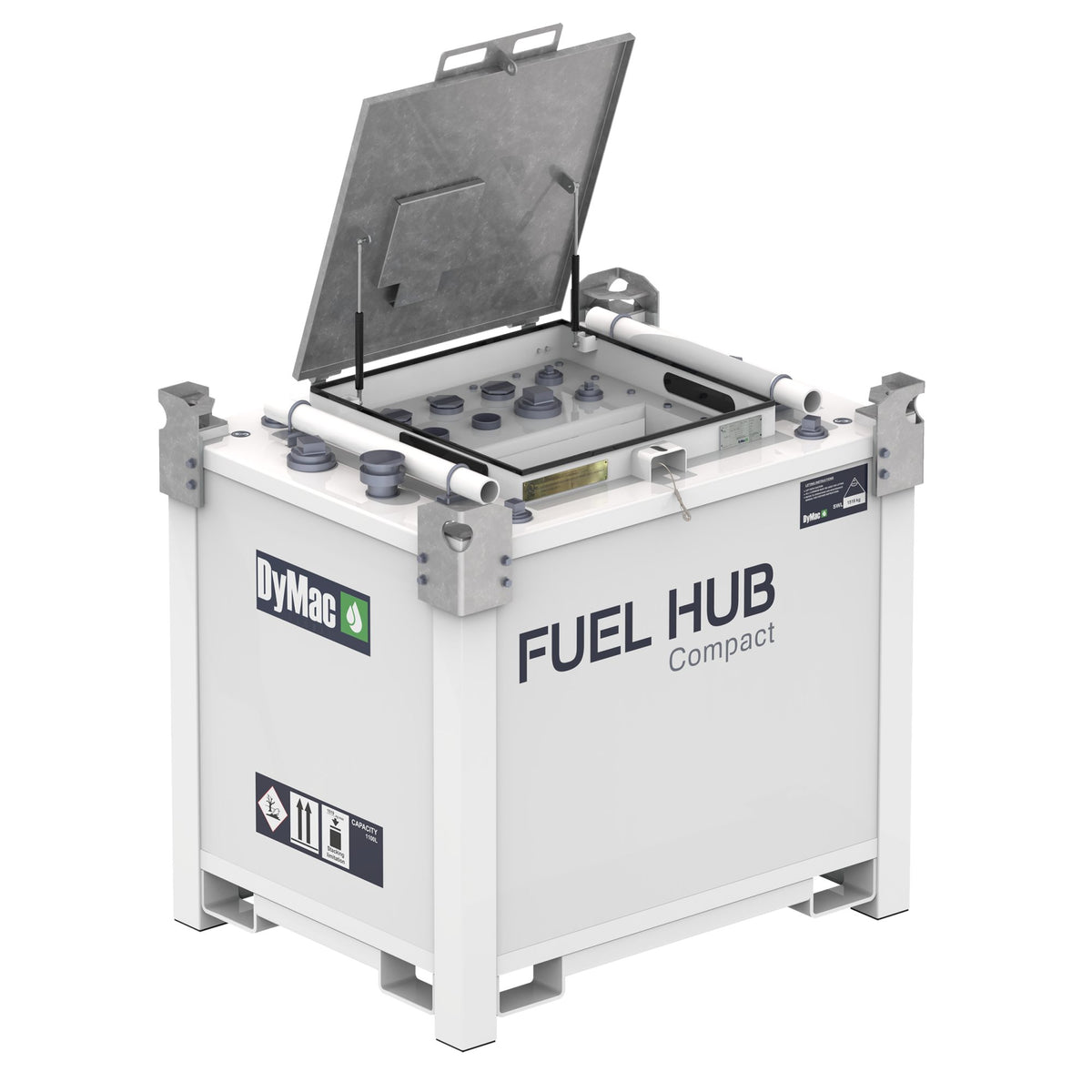

1000L FUEL HUB COMPACT

1000L FUEL HUB COMPACT

The FUEL HUB Compact Range of steel bunded storage tanks is designed for transportable and stationary use on medium to large scale refuelling applications. The Fuel Hub is an IBC transportable fuel storage tank which is 110% bunded. It also features a large secondary hatch lid opening. The Fuel Hub double wall tanks are designed as integral secondary containment and does not require independent bunds for spill containment. The design of the Duel Hub ensures a fast, easy and convenient installation in any location, indoors or outdoors. The Cube-style tank design allows for 360 degree tank viewing and inspection. A high-grade paint finish ensures longer durability in the elements.

The Fuel Hub Compact tank has been designed with bi-directional forklift pockets for ease of manoeuvrability on site and comes with 4 stacking corners with lifting lugs. Along with the conveniently positioned ports and fittings, there is a recessed equipment compartment area for the fitting of a 12V pump. This tank range is ideal for quick connection to generators and pump sets.

Specification:

• FEED - 1x 1.5" BSP Pipe Block with 1" port & Galvanized Metal Stopper, 1" Feed Downpipe with Brass NRV & 1.5" Internal Threaded Coupling.
• FEED - 2x 1.5" BSP Pipe Block with 0.5" port & Galvanized Metal Stopper, 0.5" Feed Downpipe with Brass NRV & 1.5" Internal Threaded Coupling.
• FILL - 1x 3" BSP External Threaded Pipe with 3" BSP Fusible Cap.
• LEVEL GAUGE - 1x 1.5" BSP Internal Threaded Coupling with Level Gauge.
• FILL VENT - 1x 2" BSP External Threaded Pipe with 2" BSP Aluminium Cap
• P.VENT - 1x 2" NPT Internal Threaded Coupling with 2" Pressure Vent.
• SPARE - 1x 2" BSP Internal Threaded Coupling with 2" MS Galvanized Plug.
• E.VENT - 1x 1/4" BSP Internal Threaded Coupling with 1/4" E-Vent (actuator).
• PUMP ANTISIPHON - 1x 1/8" BSP Internal Threaded Coupling with 1/8" MS Galvanized Plug.
• INTERSTITIAL DIPSTICK - 1x 2" BSP External Threaded Down Pipe with 2" BSP MS Galvanized Cap.
• INTERSTITIAL VENT - 1x 2" NPT Internal Threaded Coupling welded with 2" Elbow, 2" Vent.( for 1000L)
• BREATHER VENT - 1x 2" BSP External Threaded Pipe Welded with 3mm Perforated Plate, 2" Breather Vent.
• 4mm inner tank, 4mm outer tank
• 5 Year Warranty
• Dimensions: 1370mm L x 1085mm W x 1270mm H
• Weight empty 613kg
• Nominal capacity - 1000L, Safe fuel fill level - 965L

Approvals & Certifications:

• ULC S601 Compliant design
• UL 142 Compliant design
• UN 31 A/Y Compliant design

Dispensing Equipment Option comes with:-

• 12V/230V Diesel 56lpm Electric Pump
• 4m x 3/4" Delivery Hose
• Automatic 56 lpm Dispensing Nozzle
• 1 x 1.5m 1" Suction hose with camlock device
• 2m Power Cable with positive and negative battery clips
