EBARA BEST FOUR M SUMP PUMP
EBARA BEST FOUR M SUMP PUMP
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Kingspan Parts
What makes this PUMP the right choice?

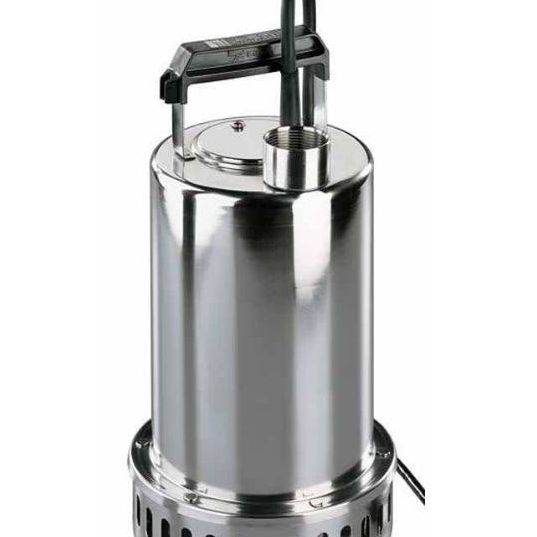

EBARA BEST FOUR M SUMP PUMP
The Ebara Best Four Manual Submersible pump can be used for various domestic applications including draining wells, garages, cellars or places that are subject to flooding.
It can also be used for movement of seepage water or draining of unfoul wastewater as well as irrigation of gardens.
Technical Details
- Equipped with mechanical seal as per standard
- Corrosion Proof
- Can be used in fixed or mobile installations
- 10m of H05 RN-F Power supply cable for indoor and outdoor use - without float.
Pump Technical Data
• 1 1/2" Bsp Female outlet
• Total Head from 1.5 to 8m
• Capacity from 1.2 to 9 m3/h
• Maximum Immersion: 5m
• Maximum Liquid Temperature: 50°C
• Maximum Solid Size Passage: 10mm
Motor Technical Data
• Asynchronous motor, 2 poles
• Class of insulation F
• IP68 Protection degree
• 230V ±10%, 50 Hz single phase voltage
Materials
• Pump casing, suction grill, seal housing disc and motor pump body in AISI 304 Stainless Steel
• Impeller, diffuser and motor cover in technopolymer reinforced with fibreglass
• Shaft in AISI 303
• Standard mechanical seal (Carbon/ Ceramic/ NBR)
Technical data
Full specifications
| Reference | |
| SKU | 0013767 |
| EDEL code | DELIVERY |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
